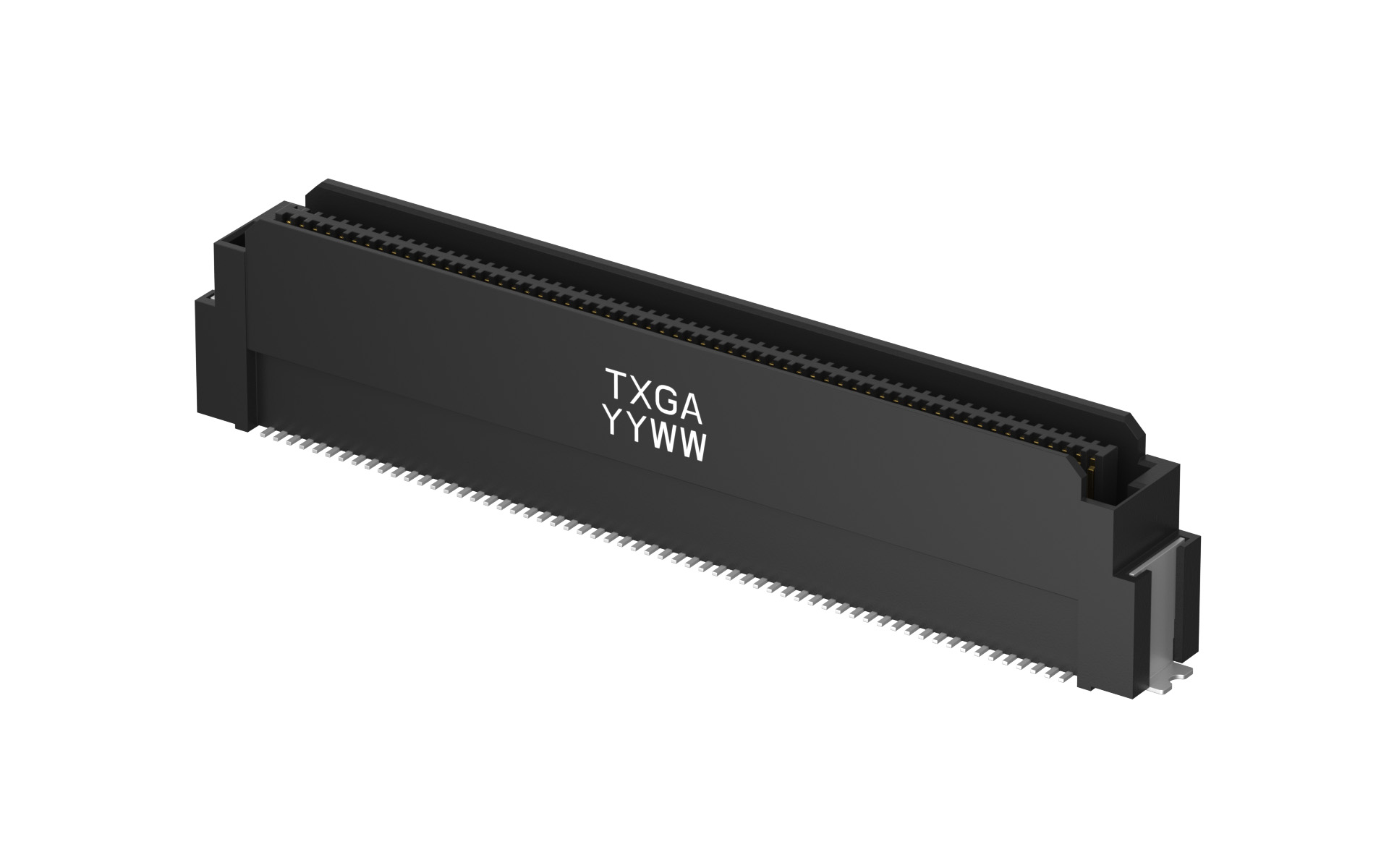

FBB08012-M120S7013BKMHC0 Board to Board Connector, 0.8mm, Male, 120Circuits, Vertical(180°), SMT, With peg, H12

FBB08012-M120S7013BKMHC0

板对板连接器,0.8mm,公,120位,垂直(180度),表面贴装,有柱,H12

Board to Board Connector, 0.8mm, Male, 120Circuits, Vertical(180°), SMT, With peg, H12

Product Number：FBB08012-M120S7013BKMHC0

Production Status： Active

Board to Board Connector, 0.8mm, Male, 120Circuits, Vertical(180°), SMT, With peg, H12

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{23.257796\|tradeCurrencySymbol({digits:6})}}
10+	{{22.519453\|tradeCurrencySymbol({digits:6})}}
50+	{{19.012325\|tradeCurrencySymbol({digits:6})}}
300+	{{15.59749\|tradeCurrencySymbol({digits:6})}}
600+	{{13.567048\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 300

MPQ 900

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Plug

Gender

Male

Pitch

0.8mm

Row Option

Dual row

Number of Positions

120Circuits

Height(mm)

H12

Peg

With peg

Orientation

Vertical(180°)

Colour

Black

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

65 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

250V AC r.m.s

Operating Temperature Range

-55ºC~+125ºC

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material-Contact

Copper alloy

Plating

Gold on contact, matte tin on tail

Plating Thickness

0.025μm

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FBB08012-M.pdf

3D Drawings

FBB08012-M120S7013BKMHC0.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
