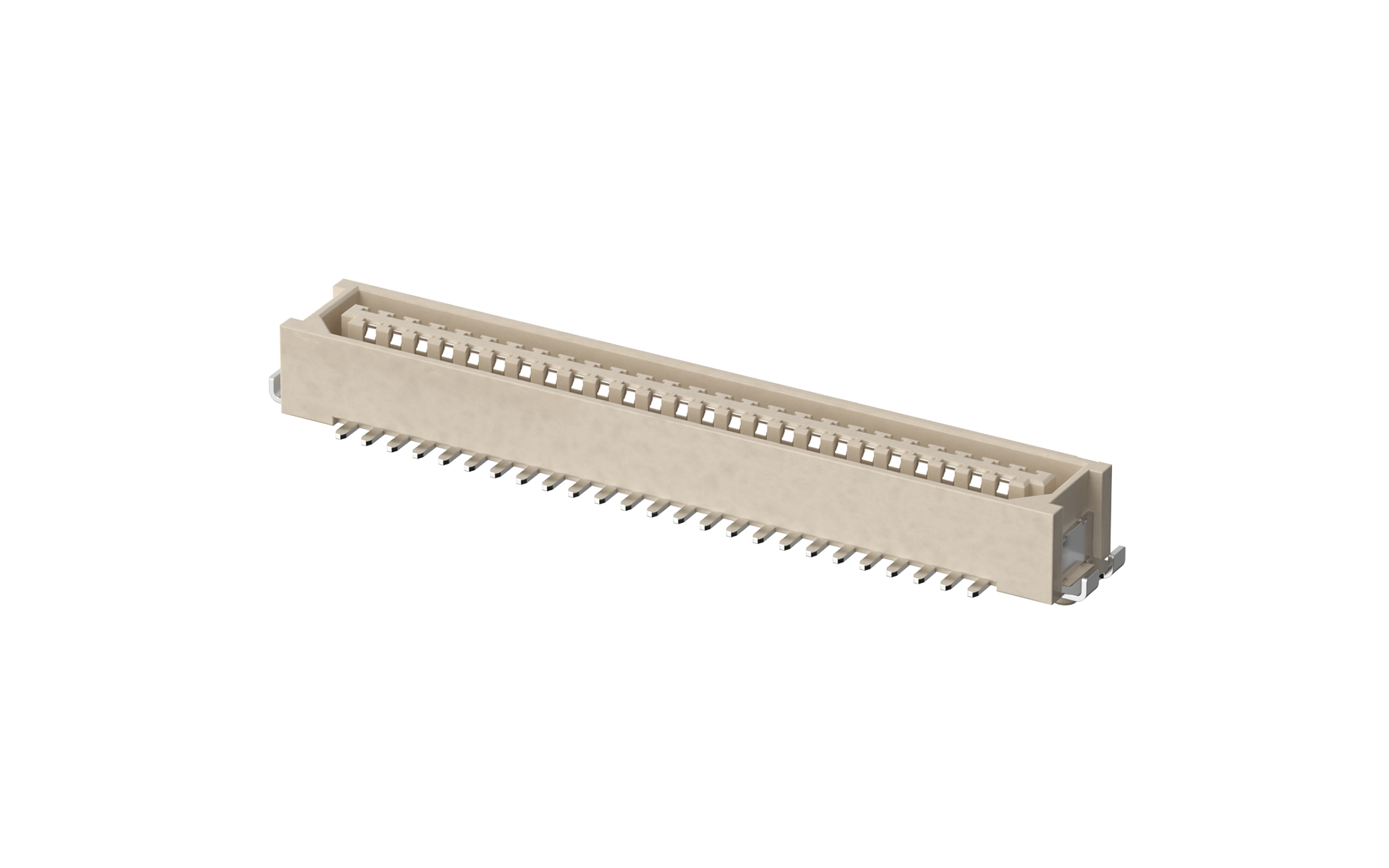

FBB10003-M31S2103W5MH33 Board to Board Connector, 1mm, Male, 31Circuits, Vertical(180°), SMT, With peg, H3.3,

FBB10003-M31S2103W5MH33

Board to Board Connector, 1mm, Male, 31Circuits, Vertical(180°), SMT, With peg, H3.3,

Product Number：FBB10003-M31S2103W5MH33

Production Status： Active

Board to Board Connector, 1mm, Male, 31Circuits, Vertical(180°), SMT, With peg, H3.3,

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{5.44893\|tradeCurrencySymbol({digits:6})}}
10+	{{4.442974\|tradeCurrencySymbol({digits:6})}}
50+	{{3.705273\|tradeCurrencySymbol({digits:6})}}
100+	{{3.38672\|tradeCurrencySymbol({digits:6})}}
500+	{{2.984337\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 7000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Plug

Gender

Male

Pitch

1mm

Row Option

Dual row

Number of Positions

31Circuits

Height(mm)

H3.3

Peg

With peg

Orientation

Vertical(180°)

Colour

Natural

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

50 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

250V AC r.m.s

Operating Temperature Range

-40ºC~+125ºC

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material-Contact

Phosphor bronze

Plating

Bright tin plated

Plating Thickness

2μm

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FBB10003-M(新).pdf

3D Drawings

FBB10003-M31SXXX3W5MH33_REF.STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
