板对板连接器 2mm ,母座 ,20位 ,立贴 (组合高度14.65mm)
FBB20001-F20S3013K6M

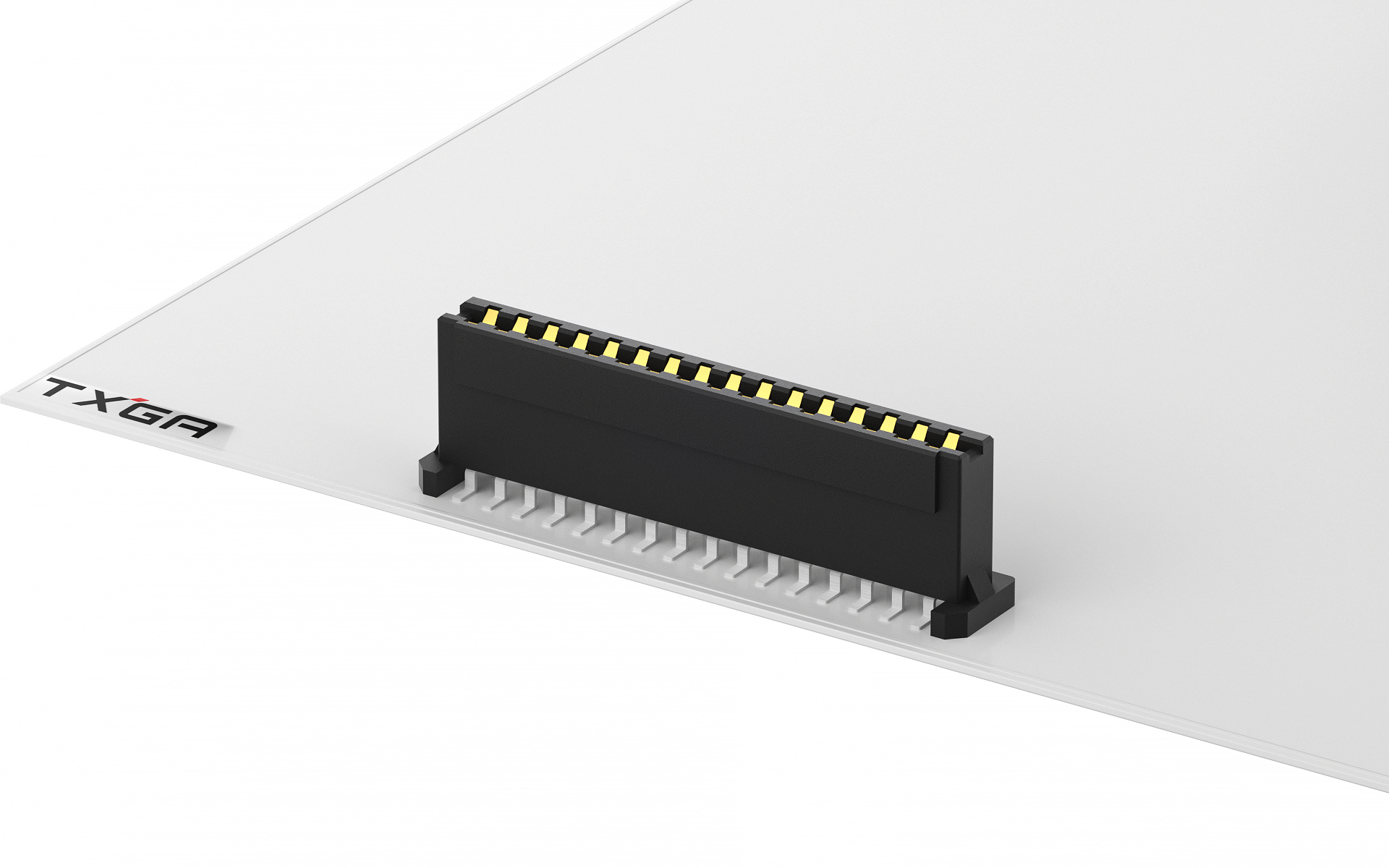

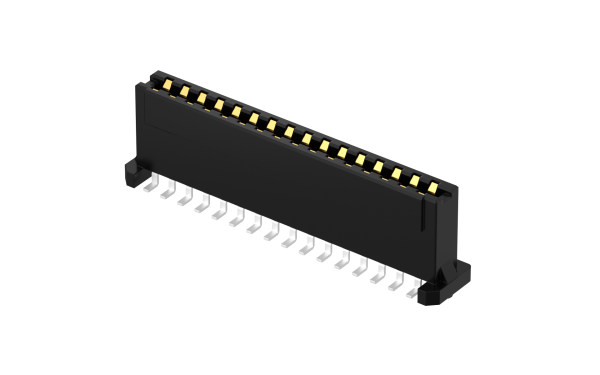

Board to Board 2mm, Female, 20Circuits, 180° Vertical(SMT) (Mated height 14.65mm)
FBB20001-F20S3013K6M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2026-01-03
MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.658845
10 $0.622283
50 $0.549159
100 $0.512596
500 $0.439472
1000 $0.351093
2500 $0.346251
5000 $0.341408
10000 $0.336565
25000 $0.331723

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
20Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1.5A
Voltage(Max)
100V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB20001-F Series

3D Drawings

FBB20001-F20S3013K6M-REF
Plug
Board to Board 2mm, Male, 20Circuits, 180° Vertical(SMT) (Mated height 14.65mm)

FBB20001-M20S3013K6M

Board to Board 2mm, Male, 20Circuits, 180° Vertical(SMT) (Mated height 14.65mm)
