板对板连接器 2.54mm ,公座 ,30位 ,立贴 (组合高度25mm)
FBB25401-M30S1005K6K

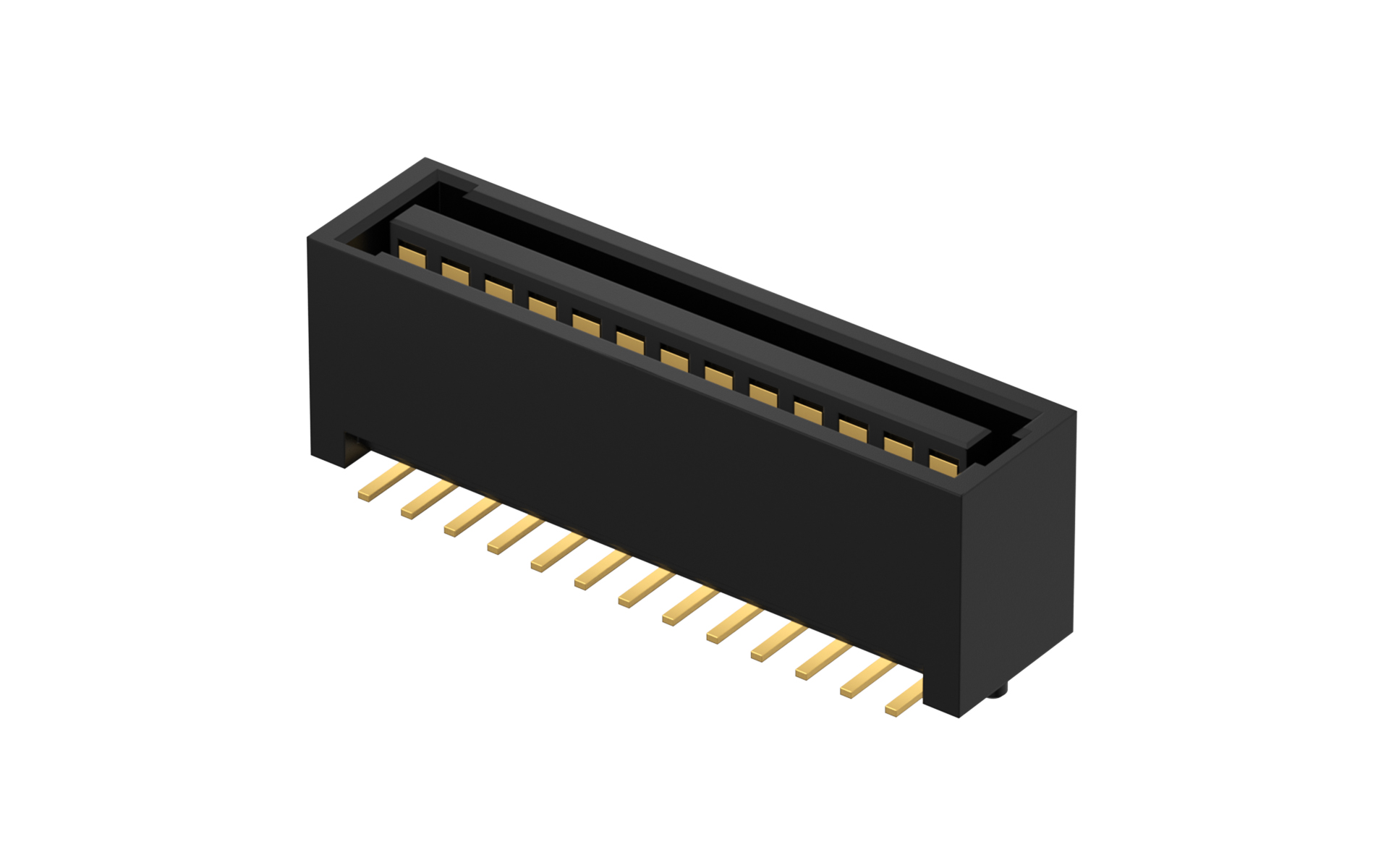

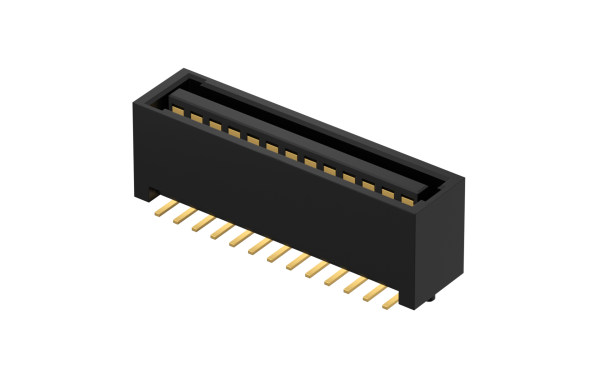

Board to Board 2.54mm, Male, 30Circuits, 180° Vertical(SMT) (Mated height 25mm)
FBB25401-M30S1005K6K Copy
Share this product
Stock(pcs)
85
Lead time

≦ 85 In stock

＞ 85 Estimated delivery date 2025-10-23

MPQ
200
MOQ
200
Quantity Unit Price
1 $0.773752
10 $0.730813
50 $0.644935
100 $0.601996
500 $0.516119
1000 $0.412326
2500 $0.406639
5000 $0.400952
10000 $0.395265
25000 $0.389577

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
2.54mm
Row Option
Dual row
Number of Positions
30Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FBB25401-M.pdf

3D Drawings

FBB25401-M30S1005K6K-REF
Receptacle
Board to Board 2.54mm, Female, 30Circuits, 180° Vertical(SMT) (Mated height 25mm)

FBB25401-F30S1005K6K

Board to Board 2.54mm, Female, 30Circuits, 180° Vertical(SMT) (Mated height 25mm)
