简牛 1.27mm 180°插件 20位(9T)
FBH12701-D20S1004K6K

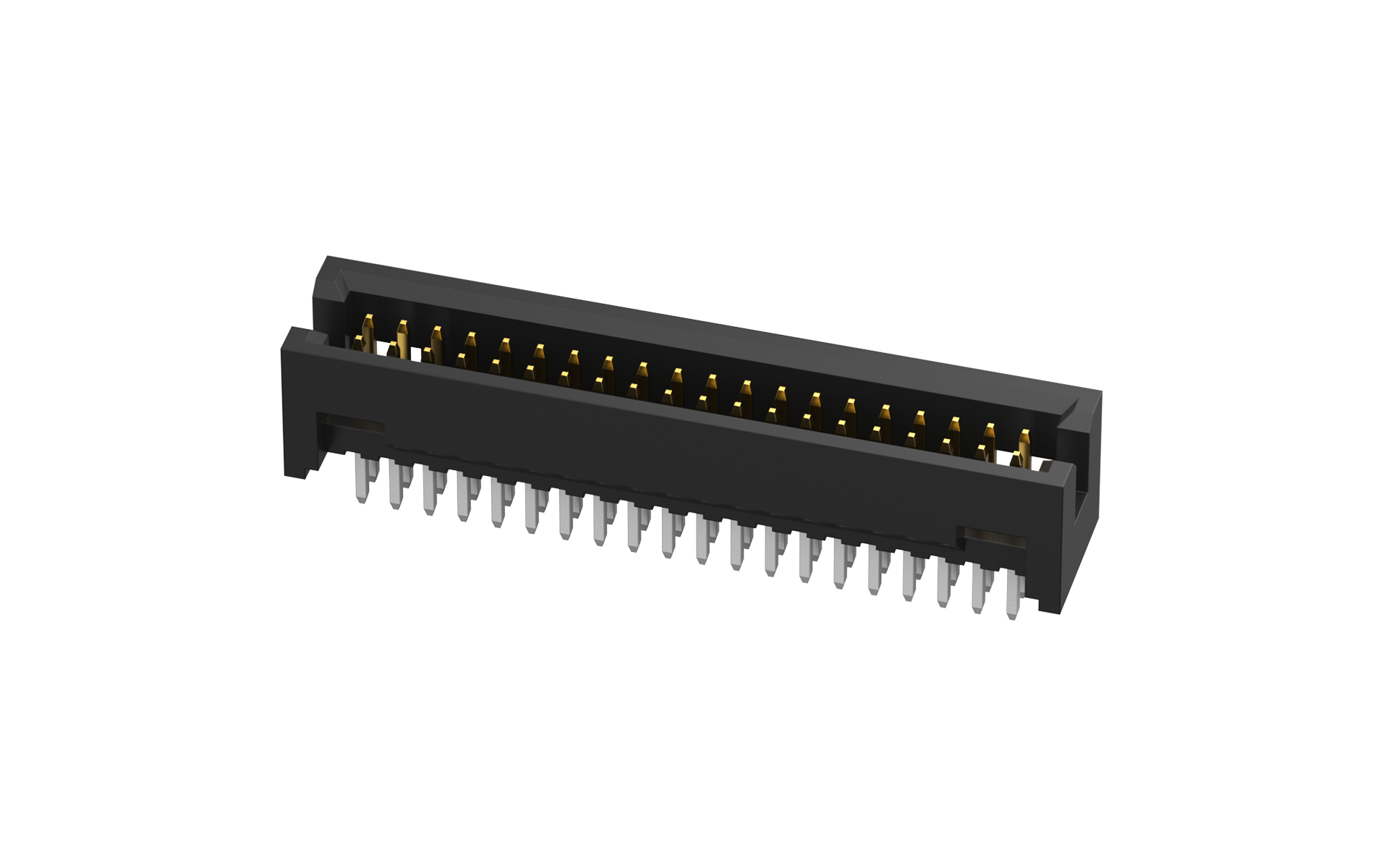

Box Header 1.27mm 180°Vertical 20Circuits(DIP)
FBH12701-D20S1004K6K Copy
Share this product
Stock(pcs)
12
Lead time

≦ 12 In stock

＞ 12 Estimated delivery date 2025-10-16

MPQ
20
MOQ
20
Quantity Unit Price
1 $0.306113
10 $0.288704
50 $0.253887
100 $0.236478
500 $0.201661
1000 $0.157328
2500 $0.155165
5000 $0.153002
10000 $0.150840
25000 $0.148677

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
1.27mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FBH12701 Series
Plug
Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

FFH12716-D20S1004K6K

Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

 Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

FFH12716-D20S1004K6M

Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

 Female Header 1.27mm, Double row, 20Circuits, 180° Vertical(SMT), 1μ", PA6T

FFH12723-D20S1014K6LA

Female Header 1.27mm, Double row, 20Circuits, 180° Vertical(SMT), 1μ", PA6T

 Female Header 1.27mm, Double row, 20Circuits, 180° Vertical(SMT), 1μ", PA6T

FFH12723-D20S1014K6MA

Female Header 1.27mm, Double row, 20Circuits, 180° Vertical(SMT), 1μ", PA6T
