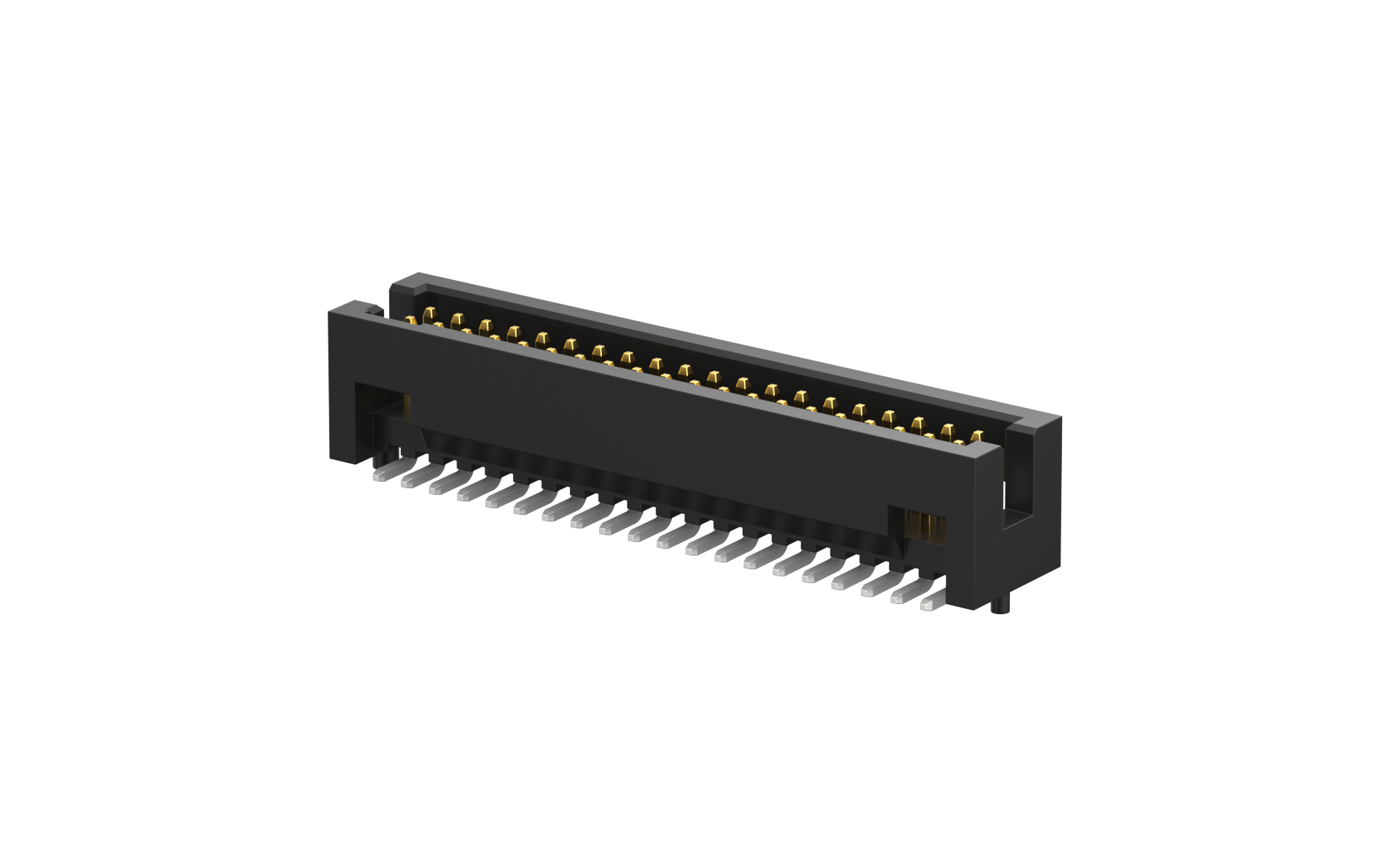

简牛 1.27mm 立贴 20位(9T)(有柱)
FBH12714-D20S1004K6M
Box Header 1.27mm 180°Vertical 20Circuits(SMT)
FBH12714-D20S1004K6M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-12-25
MPQ
20
MOQ
20
Quantity Unit Price
1 $0.451435
10 $0.425762
50 $0.374416
100 $0.348742
500 $0.297396
1000 $0.232016
2500 $0.228827
5000 $0.225638
10000 $0.222449
25000 $0.219260

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
1.27mm
Row Option
Dual row
Number of Positions
20Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBH12714 series
Plug
Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

FFH12716-D20S1004K6K

Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

 Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

FFH12716-D20S1004K6M

Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

 Female Header 1.27mm, Double row, 20Circuits, 180° Vertical(SMT), 1μ", PA6T

FFH12723-D20S1014K6LA

Female Header 1.27mm, Double row, 20Circuits, 180° Vertical(SMT), 1μ", PA6T

 Female Header 1.27mm, Double row, 20Circuits, 180° Vertical(SMT), 1μ", PA6T

FFH12723-D20S1014K6MA

Female Header 1.27mm, Double row, 20Circuits, 180° Vertical(SMT), 1μ", PA6T
