简牛 2.54mm 90°插件 20位(9T)
FBH25402-D20B1004K6K

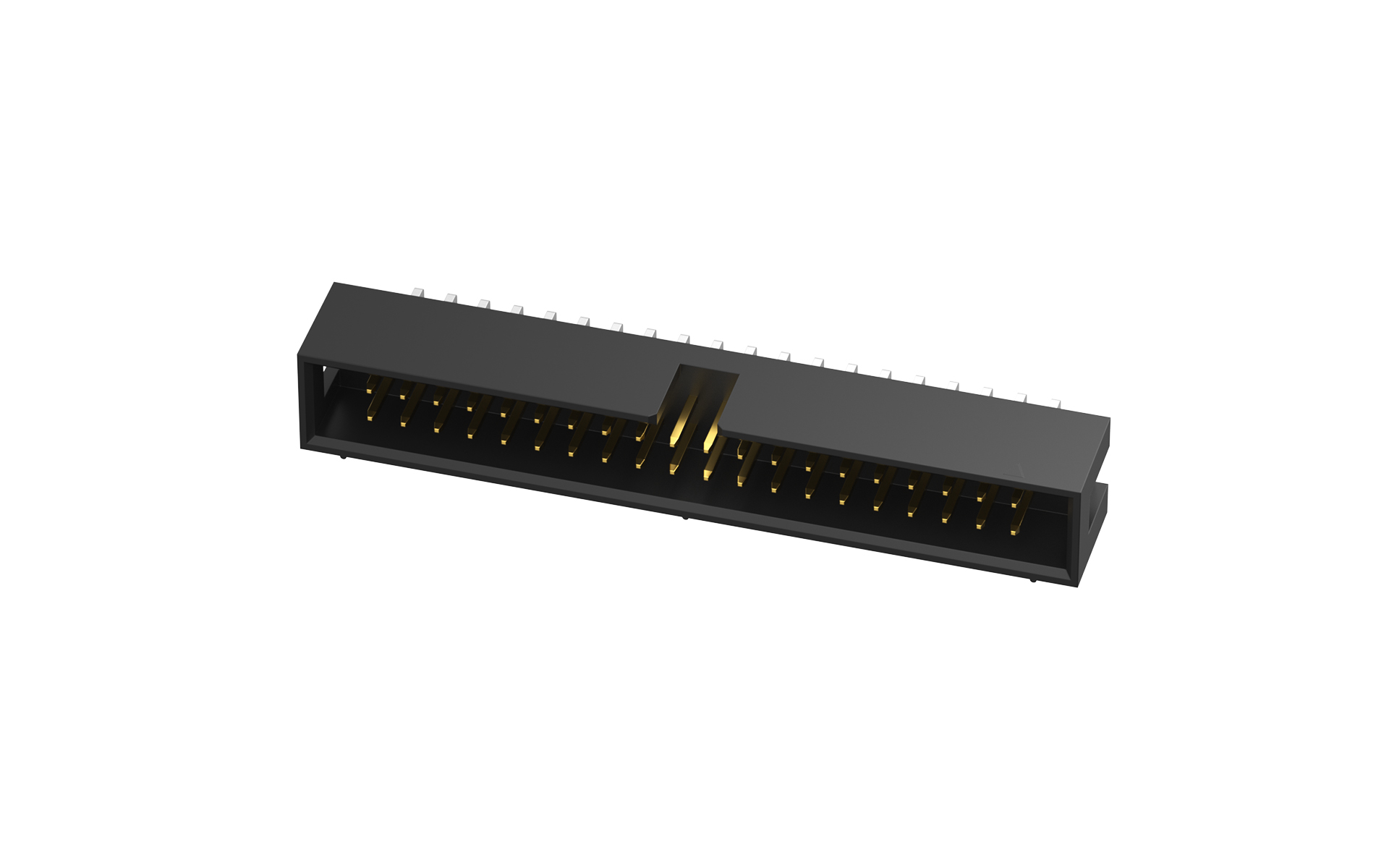

Box Header 2.54mm 90°Angle 20Circuits(DIP)
FBH25402-D20B1004K6K Copy
Share this product
Stock(pcs)
100
Lead time

≦ 100 In stock

＞ 100 Estimated delivery date 2025-12-29

MPQ
20
MOQ
20
Quantity Unit Price
1 $0.294074
10 $0.276629
50 $0.241737
100 $0.224291
500 $0.189399
1000 $0.140724
2500 $0.138796
5000 $0.136868
10000 $0.134941
25000 $0.133013

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FBH25402.pdf

3D Drawings

FBH25402-D20B1XXXK6K_REF
