FBH25402-D30B1014K6K
简易牛角,2.54mm,30位,直角(90度),通孔焊接,PA9T
Box Header, 2.54mm, 30Circuits, Right angle(90°), Through hole, PA9T
Product Number：FBH25402-D30B1014K6K
Production Status： Active
Box Header, 2.54mm, 30Circuits, Right angle(90°), Through hole, PA9T

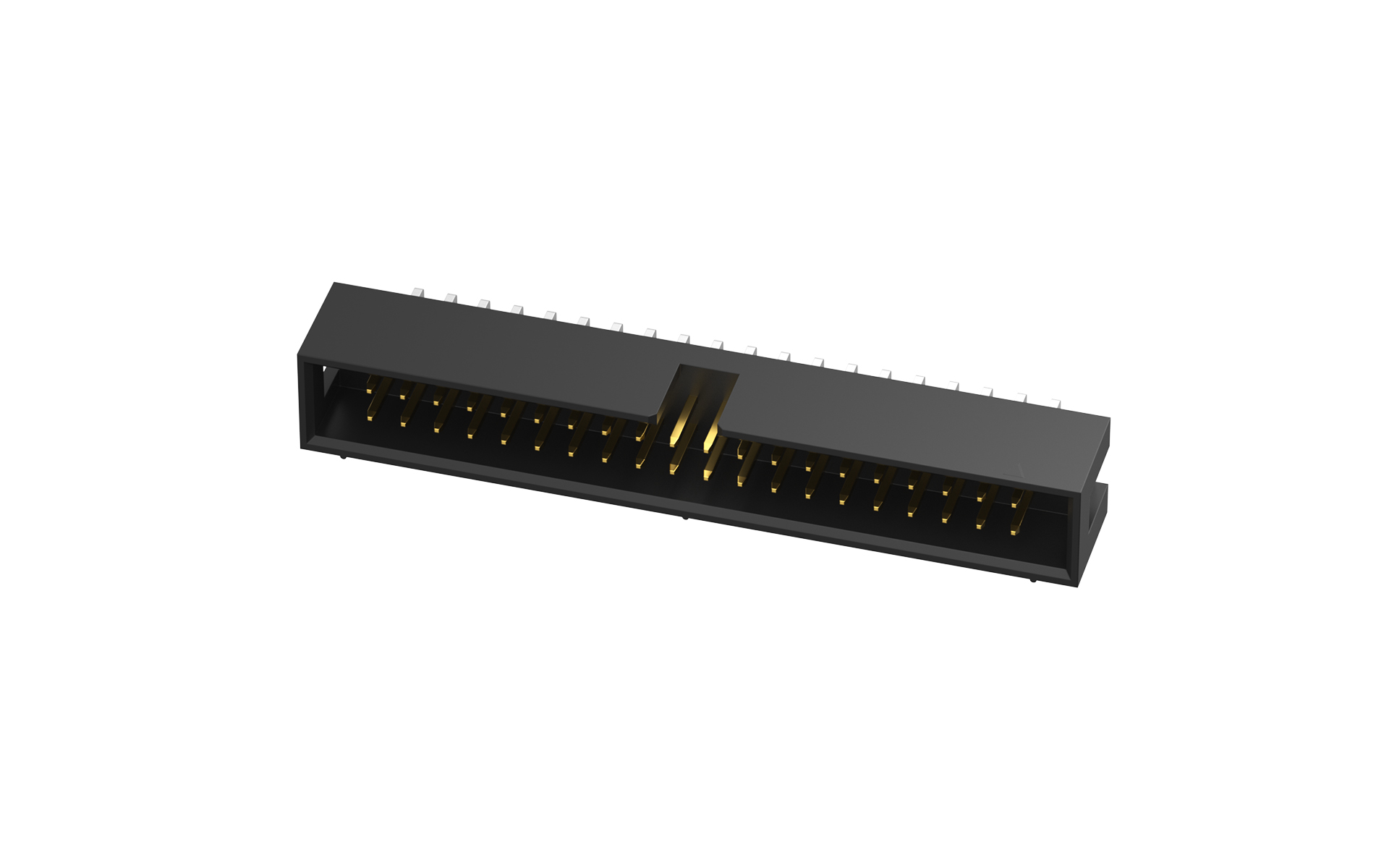

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{3.375524|tradeCurrencySymbol({digits:6})}}
10+ {{2.92991|tradeCurrencySymbol({digits:6})}}
50+ {{2.439735|tradeCurrencySymbol({digits:6})}}
100+ {{2.26149|tradeCurrencySymbol({digits:6})}}
500+ {{1.9607|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 1800
MPQ 1800

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
30Circuits
Orientation
Right angle(90°)
Colour
Black
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mounting Style
Through hole
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FBH25402.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
