FBH25404-D20S1004K6K
勾勾牛角 2.54mm 180°插件 20位(6T)(长耳)
Ejector Box Header 2.54mm 180°Vertical 20Circuits(DIP)
Product Number：FBH25404-D20S1004K6K
Production Status： Active
Ejector Box Header 2.54mm 180°Vertical 20Circuits(DIP)

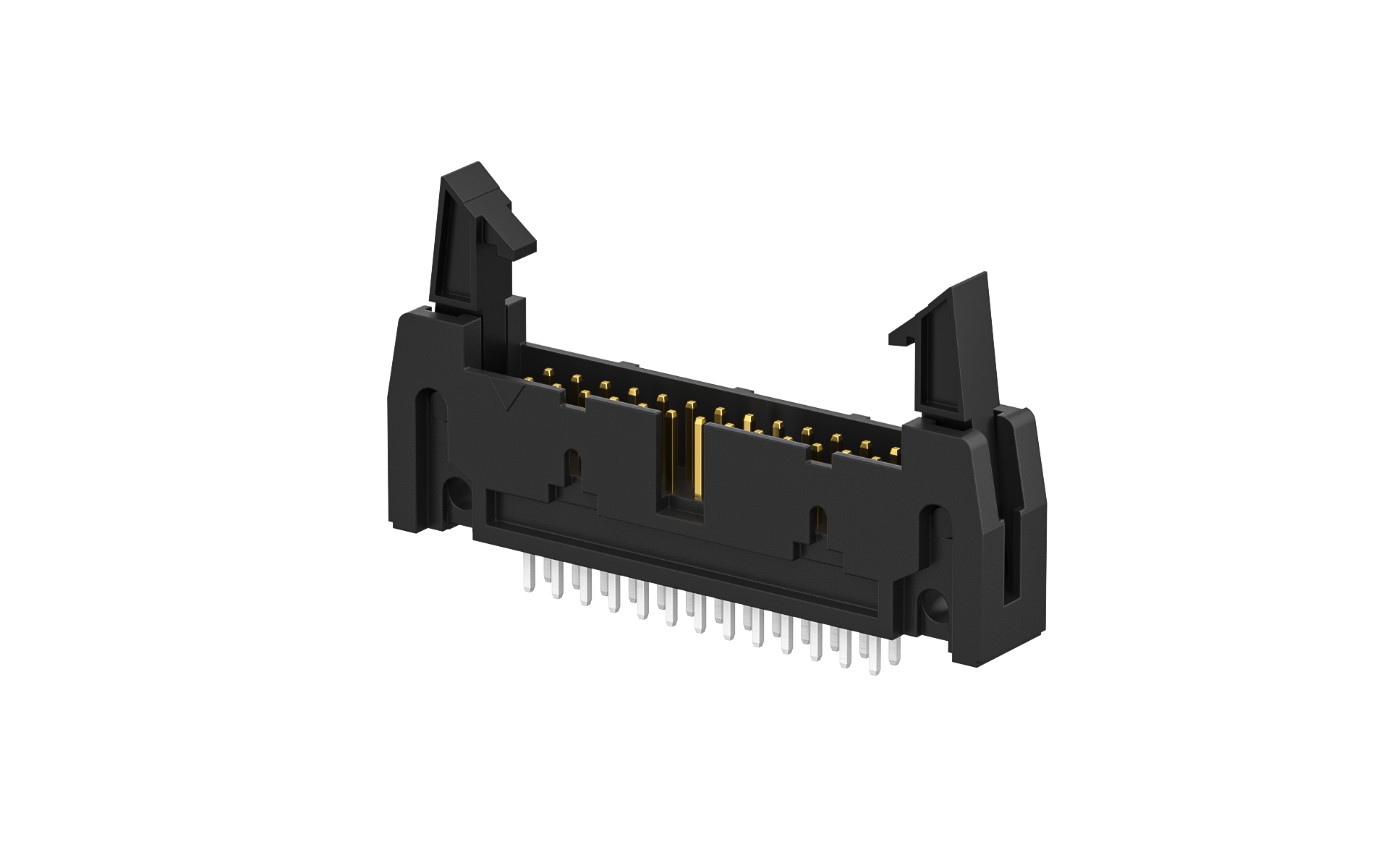

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{3.365323|tradeCurrencySymbol({digits:6})}}
10+ {{2.921056|tradeCurrencySymbol({digits:6})}}
50+ {{2.432362|tradeCurrencySymbol({digits:6})}}
100+ {{2.254655|tradeCurrencySymbol({digits:6})}}
500+ {{1.954775|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 393
Lead time Ship Immediately
MOQ 972
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Ejector Box Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Black
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mounting Style
Through hole
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FBH25404 Series.pdf

Product Specifications

Product specification FBH25404.pdf English Version
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
