FCA08002-A04P211BK2020000
M8母插头带线母直端单头，不带屏蔽 ,A-编码 ,4位 ,插头 ,0° ,PUR ,2米

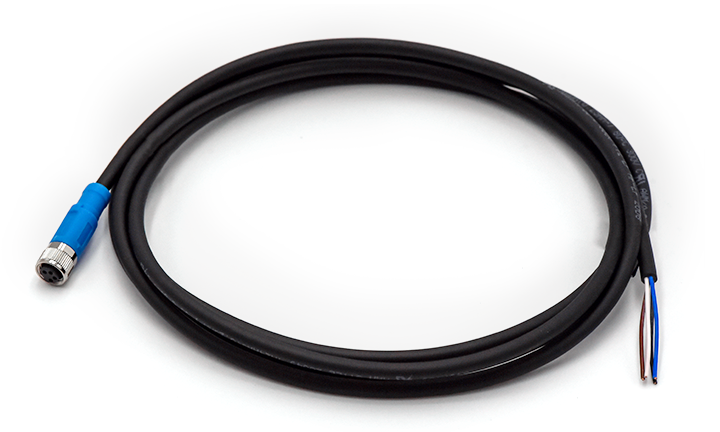

M8 CABLE FEMALE STRAIGHT SINGLE ENDED, A-CODED, 4Circuits, PLUG, 0°, PUR, 2M
Product Number：FCA08002-A04P211BK2020000
Production Status： Active
M8 CABLE FEMALE STRAIGHT SINGLE ENDED, A-CODED, 4Circuits, PLUG, 0°, PUR, 2M
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{44.637894|tradeCurrencySymbol({digits:6})}}
10+ {{38.258374|tradeCurrencySymbol({digits:6})}}
50+ {{37.200477|tradeCurrencySymbol({digits:6})}}
100+ {{36.193466|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 99
Lead time Ship Immediately
MOQ 100
MPQ 100

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Cable assembly
Coding
A coding
Shielded
Non-shielded
Cable Category
Female Straight to open
Number of Positions
4Circuits
Cable Length(mm)
L=2000mm
Current(Max)
4A
Voltage(Max)
60V
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP67
Durability (Mating Cycles Max.)
100
Material of Housing
Metal
Packaging
PE Bag

Product Drawings

FCA08002-1.pdf

Product Specifications

FCA08002-2.pdf English Version
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
