FCC0M8-A0402003-01
M8X1.0带线母插头 ,A 编码 ,4位 ,0.3米 ,不带屏蔽 ,转housing 30002

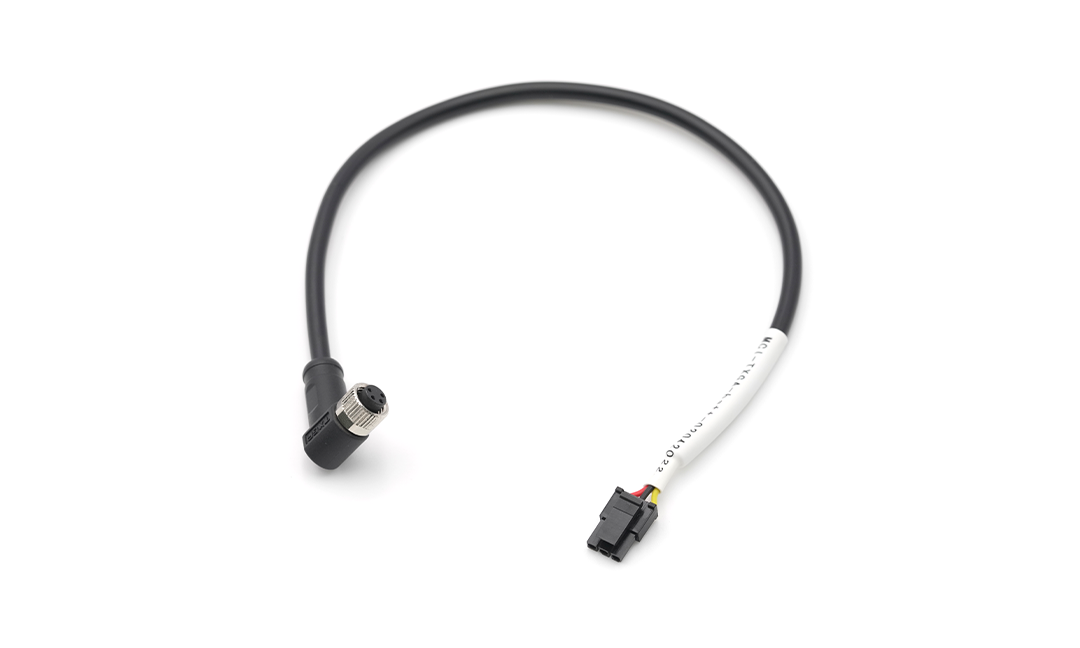

M8X1.0 Cable, A-Coded, 4Circuits, 0.3M, Without shield, to housing 30002
Product Number：FCC0M8-A0402003-01
Production Status： Active
M8X1.0 Cable, A-Coded, 4Circuits, 0.3M, Without shield, to housing 30002
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{18.086618|tradeCurrencySymbol({digits:6})}}
10+ {{16.746868|tradeCurrencySymbol({digits:6})}}
50+ {{14.904713|tradeCurrencySymbol({digits:6})}}
100+ {{13.732432|tradeCurrencySymbol({digits:6})}}
500+ {{12.392683|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 1
MPQ 50

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Cable assembly
Coding
A coding
Shielded
Non-shielded
Cable Category
Female Bent to other
Number of Positions
4Circuits
Angle-Key
90°
Cable Length(mm)
L=300mm
Current(Max)
4A
Voltage(Max)
60V
Insulation Resistance
10 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP67
Durability (Mating Cycles Max.)
50
Material of Housing
Metal
Packaging
PE Bag

Product Drawings

FCC0M8-1.pdf
FCC0M8-2.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
