FCCM16-007200-0001
M16X0.75母插头 ，7位 ,出线孔径φ6~φ8mm,不带屏蔽 ,0°

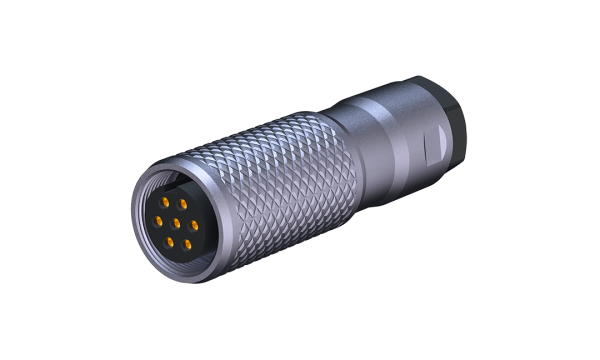

M16X0.75 female Plug, 7Circuits, cable outlet φ6~φ8mm, Without shield, 0°
Product Number：FCCM16-007200-0001
Production Status： Active
M16X0.75 female Plug, 7Circuits, cable outlet φ6~φ8mm, Without shield, 0°
M16X0.75 female Plug, 7Circuits, cable outlet φ6~φ8mm, Without shield, 0°
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{108.823051|tradeCurrencySymbol({digits:6})}}
10+ {{99.903129|tradeCurrencySymbol({digits:6})}}
50+ {{88.753226|tradeCurrencySymbol({digits:6})}}
100+ {{83.847269|tradeCurrencySymbol({digits:6})}}
500+ {{71.805374|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 23
Lead time Ship Immediately
MOQ 210
MPQ 70

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M16 Circular Connector
Style
Plug
Gender
Female
Shielded
Non-shielded
Number of Positions
7Circuits
Contacts Type
socket
Orientation
Vertical(180°)
Colour
Black
Current(Max)
5A
Voltage(Max)
60V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
N/A
Mounting Style
Soldering
Durability (Mating Cycles Max.)
500
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.125μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Tray

Product Drawings

FCCM16-0XXX00-0001.pdf

3D Drawings

FCCM16-007200-0001.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Receptacle
M16X0.75 Socket, 7Circuits, Pin, 180° Vertical, Soldering,
F0CM16-S007PSW0-0001
M16X0.75 Socket, 7Circuits, Pin, 180° Vertical, Soldering,
