Micro SD卡连接器 掀盖式(H1.8)(触点镀金)
FCD106-7M-1

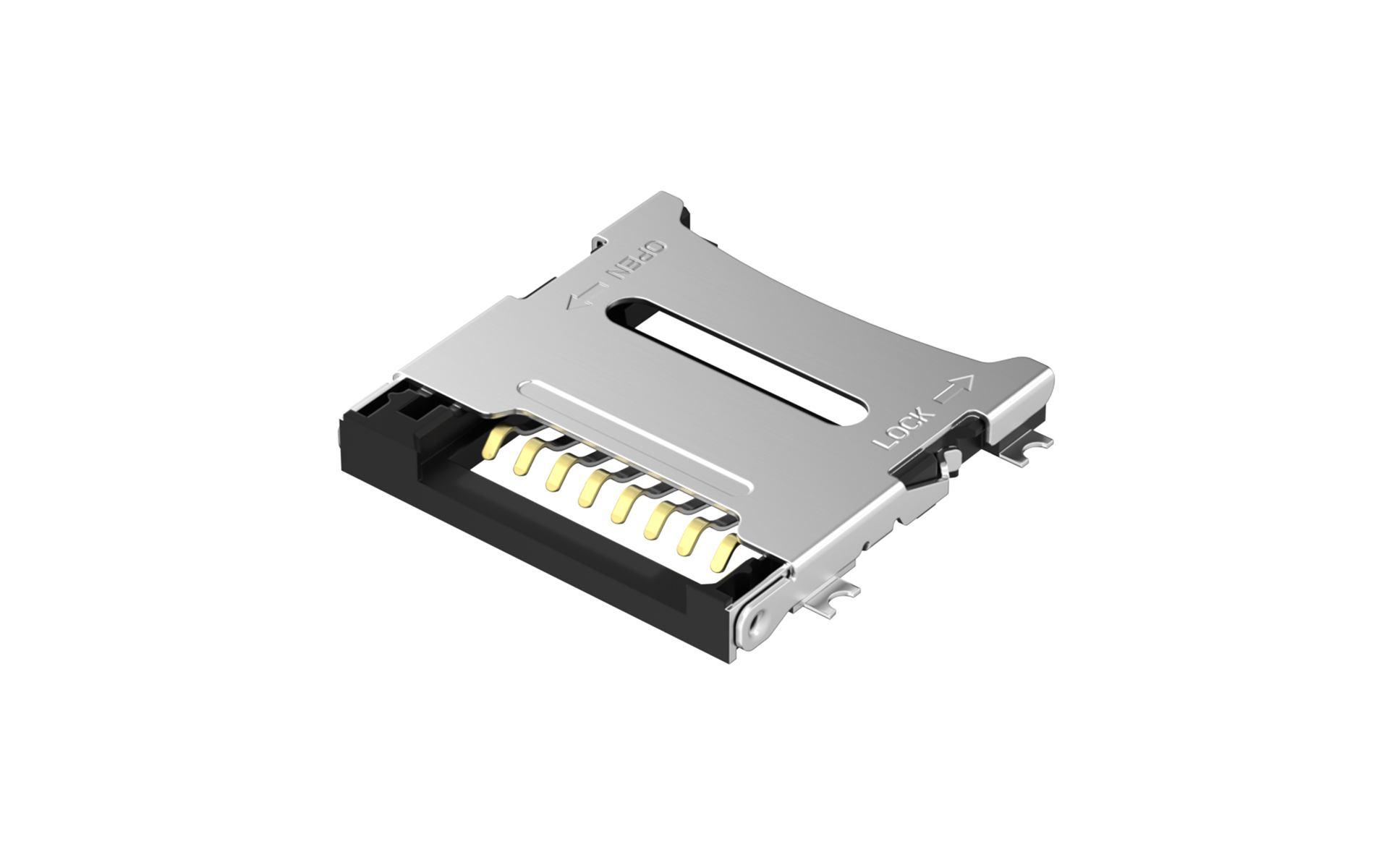

Micro SD card connector(H1.8mm)
FCD106-7M-1 Copy
Share this product
Stock(pcs)
2301
Lead time

≦ 2301 In stock

＞ 2301 Estimated delivery date 2025-06-09

MPQ
1200
MOQ
1200
Quantity Unit Price
1 $0.183630
10 $0.172736
50 $0.150949
100 $0.140055
500 $0.118267
1000 $0.087873
2500 $0.086669
5000 $0.085465
10000 $0.084262
25000 $0.083058
Category
Product Catalog
Connectors
Product System
Card Connector
Card Connector Product Category
SD card connector
Type
Micro type
Number of Positions
8Circuits
Height(mm)
H1.8
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
100V
Contact Resistance
100 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Card Install Type
Hinge style
Mounting Style
SMT
Durability (Mating Cycles Max.)
3000
Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FCD106-7M-1

3D Drawings

FCD106-7M-1_REF

Product Specifications

Product specification FCD106
