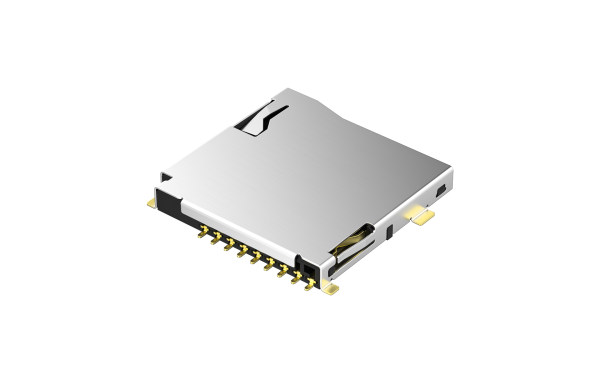

FCD403-7M Mirco SD card connector(Push to Push)

FCD403-7M

Mirco SD card connector(Push to Push)

Product Number：FCD403-7M

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{2.63346\|tradeCurrencySymbol({digits:6})}}
10+	{{2.483695\|tradeCurrencySymbol({digits:6})}}
50+	{{2.184162\|tradeCurrencySymbol({digits:6})}}
100+	{{2.034397\|tradeCurrencySymbol({digits:6})}}
500+	{{1.734865\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 10000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Card Connector

Product Category

SD card connector

Type

Micro type

Number of Positions

8Circuits

Height(mm)

H1.85

Peg

With peg

Orientation

Right angle(90°)

Colour

Black

Current(Max)

0.5A

Voltage(Max)

100V

Contact Resistance

100 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Card Install Type

Push-push

Mounting Style

SMT

Durability (Mating Cycles Max.)

5000

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

Gold flash

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FCD403-2.pdf

3D Drawings

FCD403-1.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
