FCD507-8M
Mini SIM卡连接器 6触点(H2.5)(掀盖式)
Mini SIM card connector 6Circuits(H2.5)
Product Number：FCD507-8M
Production Status： Active

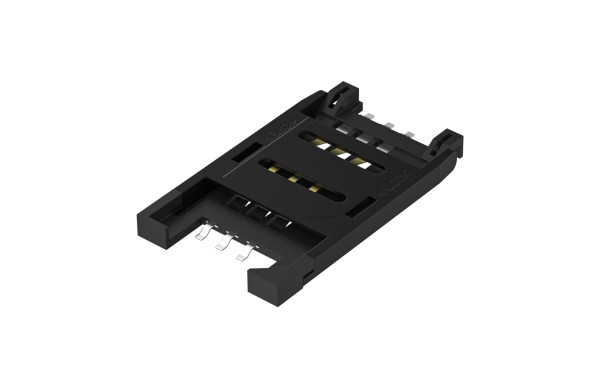

Mini SIM card connector 6Circuits(H2.5)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{2.319805|tradeCurrencySymbol({digits:6})}}
10+ {{2.187877|tradeCurrencySymbol({digits:6})}}
50+ {{1.92402|tradeCurrencySymbol({digits:6})}}
100+ {{1.792093|tradeCurrencySymbol({digits:6})}}
500+ {{1.528236|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 279
Lead time Ship Immediately
MOQ 1
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Card Connector
Product Category
SIM card connector
Type
Mini type
Number of Positions
6Circuits
Height(mm)
H2.5
Orientation
Right angle(90°)
Colour
Black
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Card Install Type
Hinge style
Mounting Style
SMT
Durability (Mating Cycles Max.)
10000
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FCD507.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
