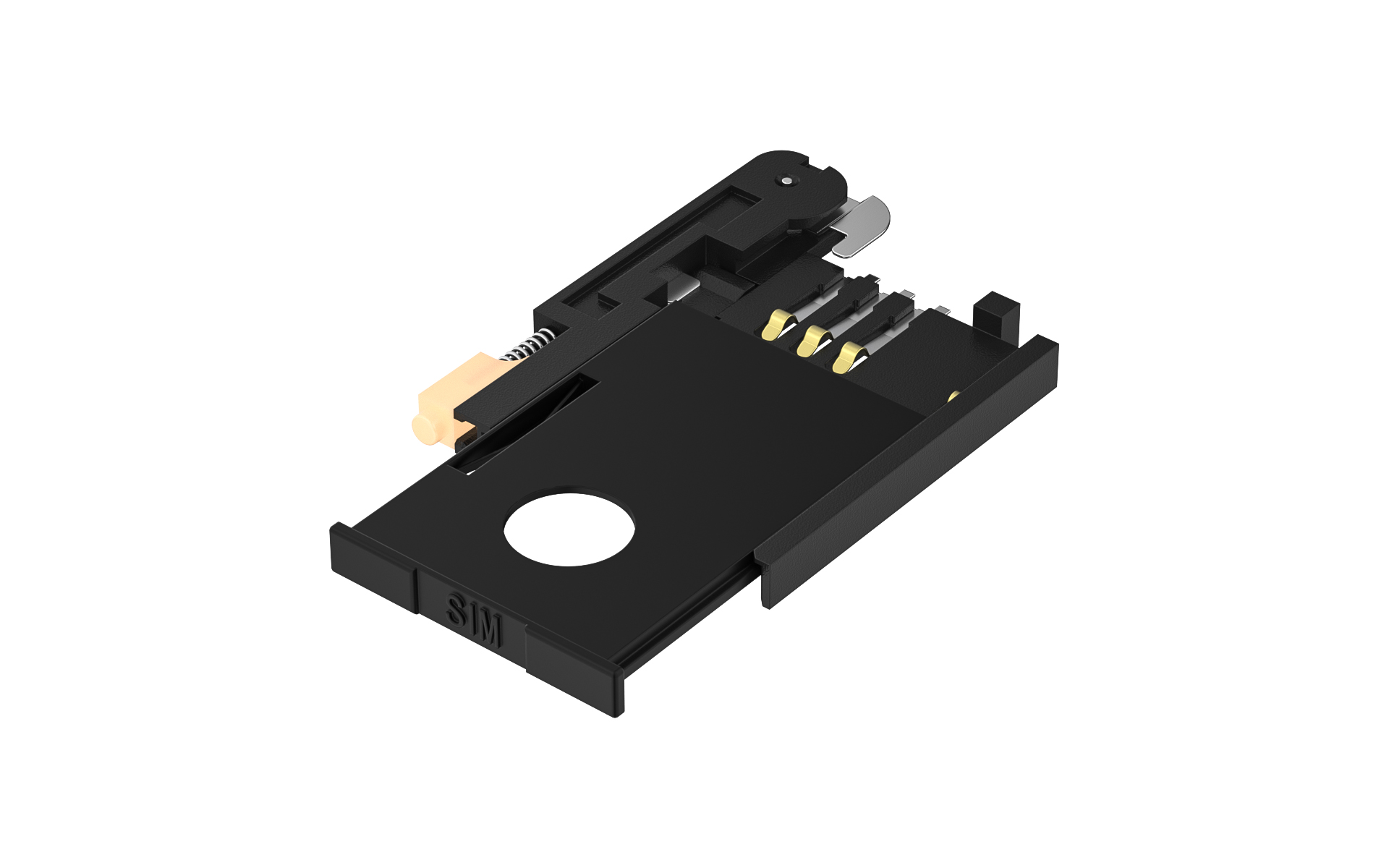

FCD515-7L Mini SIM card connector 8Circuits(H3)

FCD515-7L

Mini SIM card connector 8Circuits(H3)

Product Number：FCD515-7L

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{6.653172\|tradeCurrencySymbol({digits:6})}}
10+	{{6.283959\|tradeCurrencySymbol({digits:6})}}
50+	{{5.545533\|tradeCurrencySymbol({digits:6})}}
100+	{{5.17632\|tradeCurrencySymbol({digits:6})}}
500+	{{4.437893\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Card Connector

Product Category

SIM card connector

Type

Mini type

Number of Positions

6Circuits

Height(mm)

Orientation

Right angle(90°)

Colour

Black

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

40 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Card Install Type

Push-pull

Mounting Style

SMT

Durability (Mating Cycles Max.)

5000

Material-Contact

Phosphor bronze

Plating

Gold on contact, matte tin on tail

Plating Thickness

Gold flash

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Tube

Product Drawings

FCD515.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
