FCD904-7M
Nano SIM卡连接器 7触点(H1.37)(自弹式)

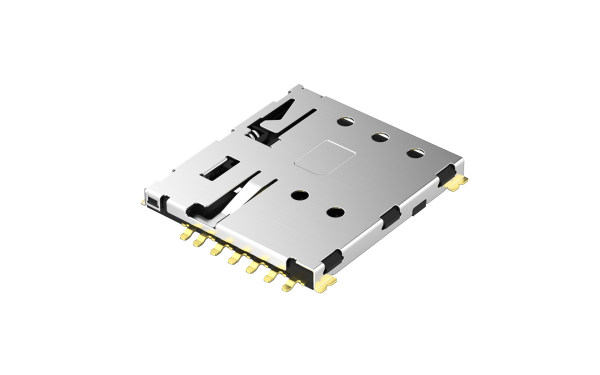

Nano SIM Card Connector 7Circuits(H1.37)(Push to push)
Product Number：FCD904-7M
Production Status： Active
Nano SIM Card Connector 7Circuits(H1.37)(Push to push)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{4.65313|tradeCurrencySymbol({digits:6})}}
10+ {{4.394907|tradeCurrencySymbol({digits:6})}}
50+ {{3.878463|tradeCurrencySymbol({digits:6})}}
100+ {{3.620241|tradeCurrencySymbol({digits:6})}}
500+ {{3.103796|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 1500
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Card Connector
Product Category
SIM card connector
Type
Nano type
Number of Positions
6Circuits
Height(mm)
H1.37
Peg
With peg
Orientation
Right angle(90°)
Colour
Black
Current(Max)
1A
Voltage(Max)
30V
Contact Resistance
50 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Card Install Type
Push-push
Mounting Style
SMT
Durability (Mating Cycles Max.)
5000
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FCD904-1.pdf

3D Drawings

FCD904-3.zip
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
