FCM-OBD-M16W1K
OBD 接口 16位 插件180°（穿孔式）
OBD Connectors 16Circuits 180° Vertical (DIP)
Product Number：FCM-OBD-M16W1K
Production Status： Active
OBD Connectors 16Circuits 180° Vertical (DIP)

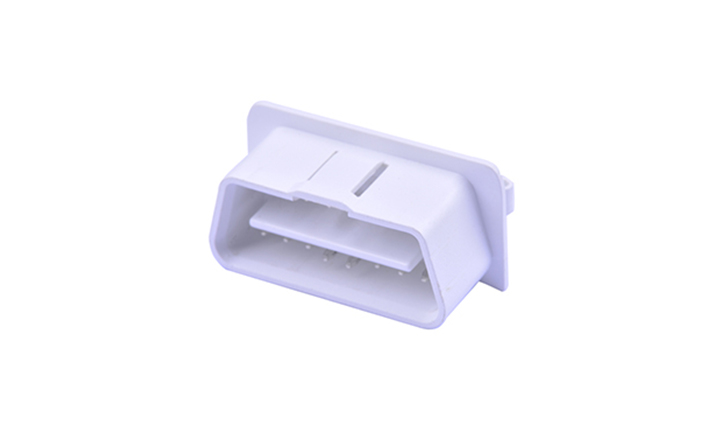

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{14.336006|tradeCurrencySymbol({digits:6})}}
10+ {{13.550914|tradeCurrencySymbol({digits:6})}}
50+ {{11.980728|tradeCurrencySymbol({digits:6})}}
100+ {{11.195635|tradeCurrencySymbol({digits:6})}}
500+ {{9.625451|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 110
Lead time Ship Immediately
MOQ 5000
MPQ 850

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
OBD Connector
Style
Socket
Gender
Male
Pitch
4mm
Number of Positions
16Circuits
Orientation
Vertical(180°)
Colour
White
Current(Max)
5A
Voltage(Max)
220V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mounting Style
Through hole
Material-Contact
Copper alloy
Plating
Matte tin plated
Plating Thickness
2.5μm
Material-Resin
PC
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FCM-OBD-M16W1K.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
