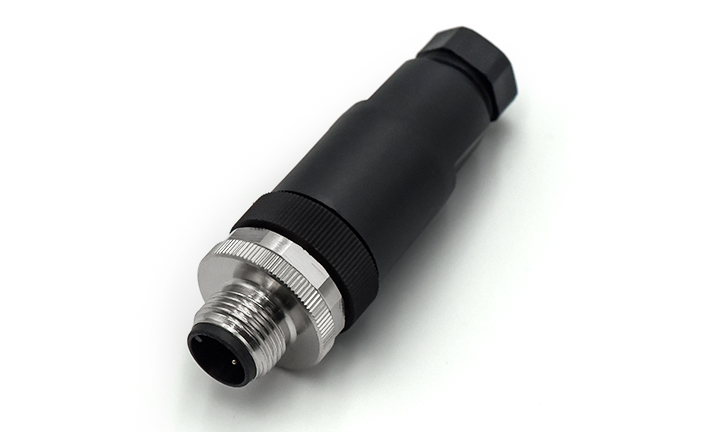

FCQ12001-A03P2211BKB000
M12 X1.0 公插头，A编码直头螺钉类型（非屏蔽）3位 ,PG7螺纹
M12X1.0 MALE A CODE, ST UNSHIELDED SCREW, 3Circuits, PG7
Product Number：FCQ12001-A03P2211BKB000
Production Status： Active
M12X1.0 MALE A CODE, ST UNSHIELDED SCREW, 3Circuits, PG7
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{34.815273|tradeCurrencySymbol({digits:6})}}
50+ {{29.847333|tradeCurrencySymbol({digits:6})}}
100+ {{29.009594|tradeCurrencySymbol({digits:6})}}
500+ {{25.70452|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 55
Lead time Ship Immediately
MOQ 50
MPQ 50

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M12 Circular Connector
Style
Plug
Gender
Male
Coding
A coding
Shielded
Non-shielded
Number of Positions
3Circuits
Contacts Type
pin
Orientation
Vertical(180°)
Colour
Black
Current(Max)
4A
Voltage(Max)
250V
Contact Resistance
8 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
2500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP67
Panel Mount Feature
N/A
Mounting Style
Screw locking
Durability (Mating Cycles Max.)
100
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
PA
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
PE Bag

Product Drawings

FCQ12001-1.pdf

Instruction Documents

FCQ12001-2.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
