PG9,后锁圆形连接器,母,插座,A编码,12位,垂直(180度),通孔焊接
FCR1M12-SA12SSD0-00

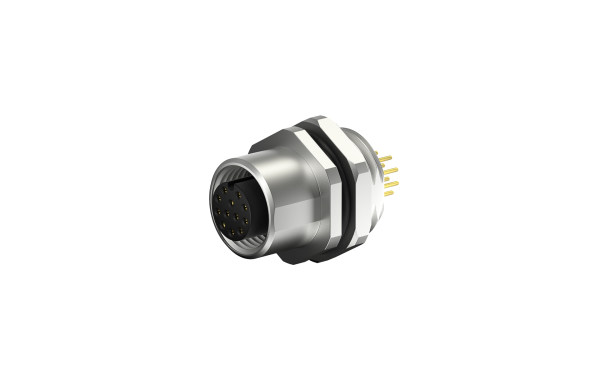

PG9, rear lock circular connector, Female, Socket, A coding, 12Circuits, Vertical(180°), Through hole
FCR1M12-SA12SSD0-00 Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-07-23
MPQ
35
MOQ
10
Quantity Unit Price
1 $4.322465
10 $3.967480
50 $3.612495
100 $3.320154
500 $2.986051
1000 $2.777236
5000 $2.696027
Category
Product Catalog
Connectors
Product System
M12 Circular Connector
Features
Standard
Style
Socket
Gender
Female
Coding
A coding
Shielded
Non-shielded
Number of Positions
12Circuits
Contacts Type
socket
Thread Spec
M12
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1.5A
Voltage(Max)
30V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Fastening Method
Nut
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
Material
Surface Treatment
Plating
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Packaging
Tray

Product Drawings

FCR1M12-SXXXSSD0-00

3D Drawings

FCR1M12-SA12SSD0-00
Plug
M12X1.0 A Coded 12pin, male straight single end, cable length L=2m，unshielded

FCQM12-A1202000-000

M12X1.0 A Coded 12pin, male straight single end, cable length L=2m，unshielded

 M12X1.0 A Coded 12pin, male straight single end, cable length L=2m，shielded

FCQM12-A1202010-000

M12X1.0 A Coded 12pin, male straight single end, cable length L=2m，shielded

 M12X1.0 A Coded 12pin, male right angle end, cable length L=2m，entry angle 45°，unshielded

FCSM12-A1202001-000

M12X1.0 A Coded 12pin, male right angle end, cable length L=2m，entry angle 45°，unshielded

 M12X1.0 A Coded 12pin, male right angle end, cable length L=2m，entry angle 90°，unshielded

FCSM12-A1202002-000

M12X1.0 A Coded 12pin, male right angle end, cable length L=2m，entry angle 90°，unshielded
