PG9,后锁圆形连接器,母,插座,B编码,4位,垂直(180度),通孔焊接
FCR1M12-SB04SSD0-00

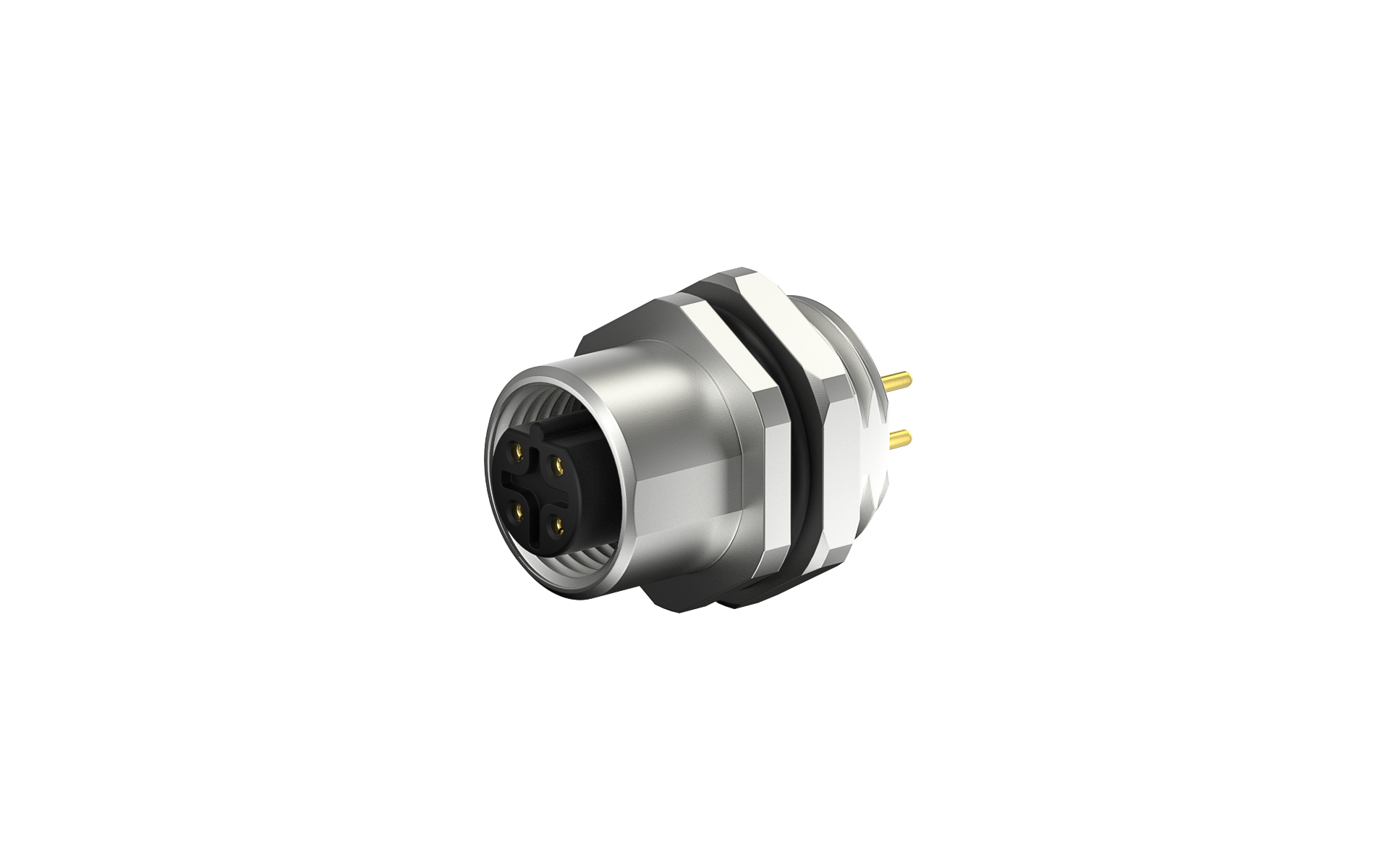

PG9, rear lock circular connector, Female, Socket, Bcoding, 4Circuits, Vertical(180°), Through hole
FCR1M12-SB04SSD0-00 Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-07-23
MPQ
35
MOQ
10
Quantity Unit Price
1 $3.292123
10 $3.029371
50 $2.720252
100 $2.503868
500 $2.256572
1000 $2.078829
5000 $2.013682
Category
Product Catalog
Connectors
Product System
M12 Circular Connector
Features
Standard
Style
Socket
Gender
Female
Coding
B coding
Shielded
Non-shielded
Number of Positions
4Circuits
Contacts Type
socket
Thread Spec
M12
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
4A
Voltage(Max)
250V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Fastening Method
Nut
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
Material
Surface Treatment
Plating
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Packaging
Tray

Product Drawings

FCR1M12-SXXXSSD0-00

3D Drawings

FCR1M12-SB04SSD0-00
Plug
M12X1.0 BCoded 4pin, male straight single end, cable length L=2m，unshielded

FCQM12-B0402000-000

M12X1.0 BCoded 4pin, male straight single end, cable length L=2m，unshielded

 M12X1.0 B Coded 4pin, male straight single end, cable length L=2m，shielded

FCQM12-B0402010-000

M12X1.0 B Coded 4pin, male straight single end, cable length L=2m，shielded

 M12X1.0 B Coded 4pin, male right angle end, cable length L=2m，entry angle 45°，unshielded

FCSM12-B0402001-000

M12X1.0 B Coded 4pin, male right angle end, cable length L=2m，entry angle 45°，unshielded

 M12X1.0 B Coded 4pin, male right angle end, cable length L=2m，entry angle 90°，unshielded

FCSM12-B0402002-000

M12X1.0 B Coded 4pin, male right angle end, cable length L=2m，entry angle 90°，unshielded
