M16X1.5,后锁圆形连接器,公,插座,A编码,12位,针,垂直 180度,通孔焊接
FCR3M12-SA12PSD0-00

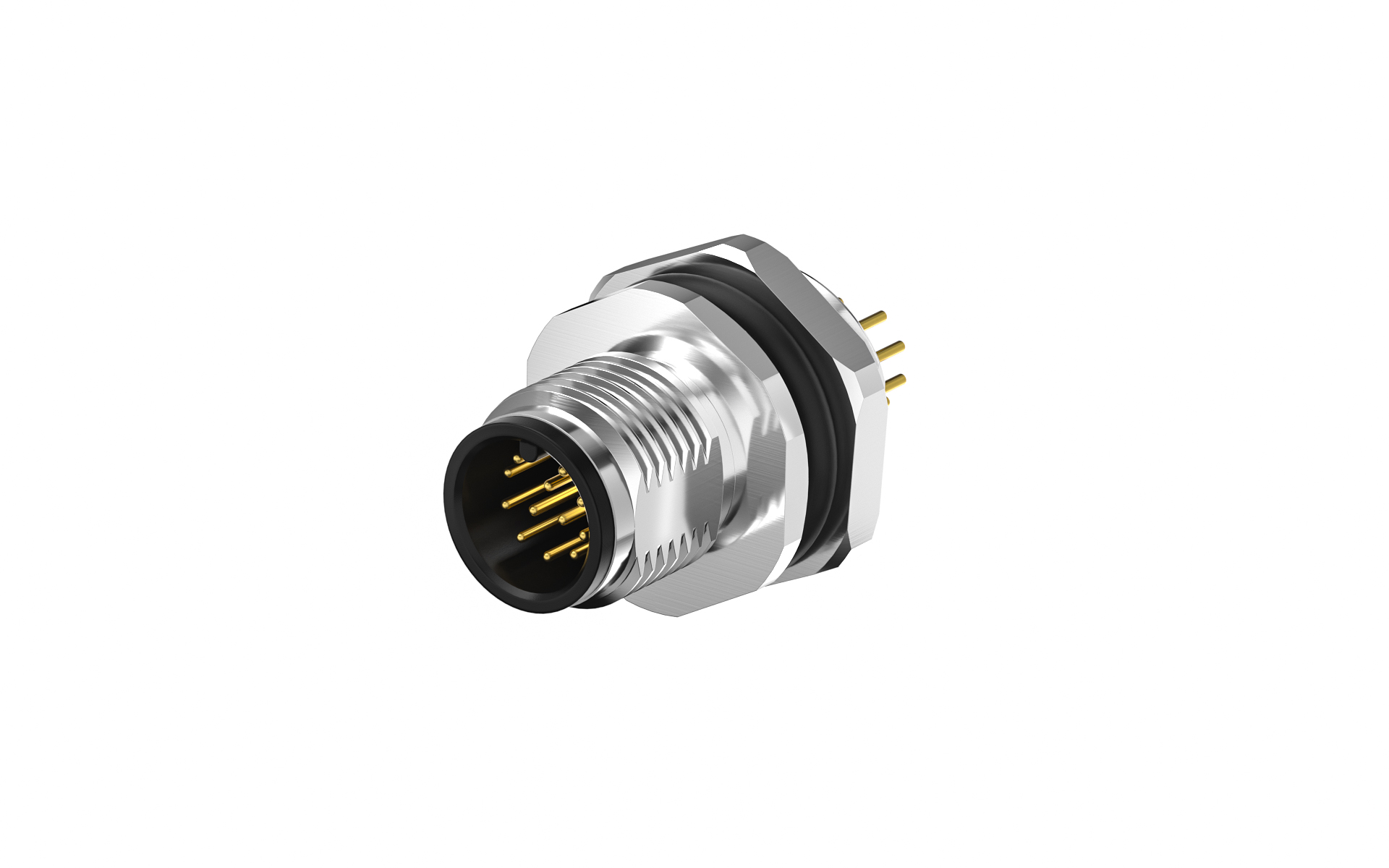

M16X1.5, rear lock circular connector, Male, Socket, A coding, 12Circuits, pin, Vertical 180°, Through hole
FCR3M12-SA12PSD0-00 Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-07-22
MPQ
35
MOQ
10
Quantity Unit Price
1 $5.603832
10 $5.143613
50 $4.683395
100 $4.304392
500 $3.871246
1000 $3.600529
5000 $3.500750
Category
Product Catalog
Connectors
Product System
M12 Circular Connector
Features
Standard
Style
Socket
Gender
Male
Coding
A coding
Shielded
Non-shielded
Number of Positions
12Circuits
Contacts Type
pin
Thread Spec
M12
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1.5A
Voltage(Max)
30V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Fastening Method
Nut
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
Material
Surface Treatment
Plating
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Packaging
Tray

Product Drawings

FCR3M12-SXXXPSD0-00

3D Drawings

FCR3M12-SA12PSD0-00
Plug
M12X1.0 A Coded 12pin, female straight single end, cable length L=2m，unshielded

FCPM12-A1202000-000

M12X1.0 A Coded 12pin, female straight single end, cable length L=2m，unshielded

 M12X1.0 A Coded 12pin, female straight single end, cable length L=2m，shielded

FCPM12-A1202010-000

M12X1.0 A Coded 12pin, female straight single end, cable length L=2m，shielded
