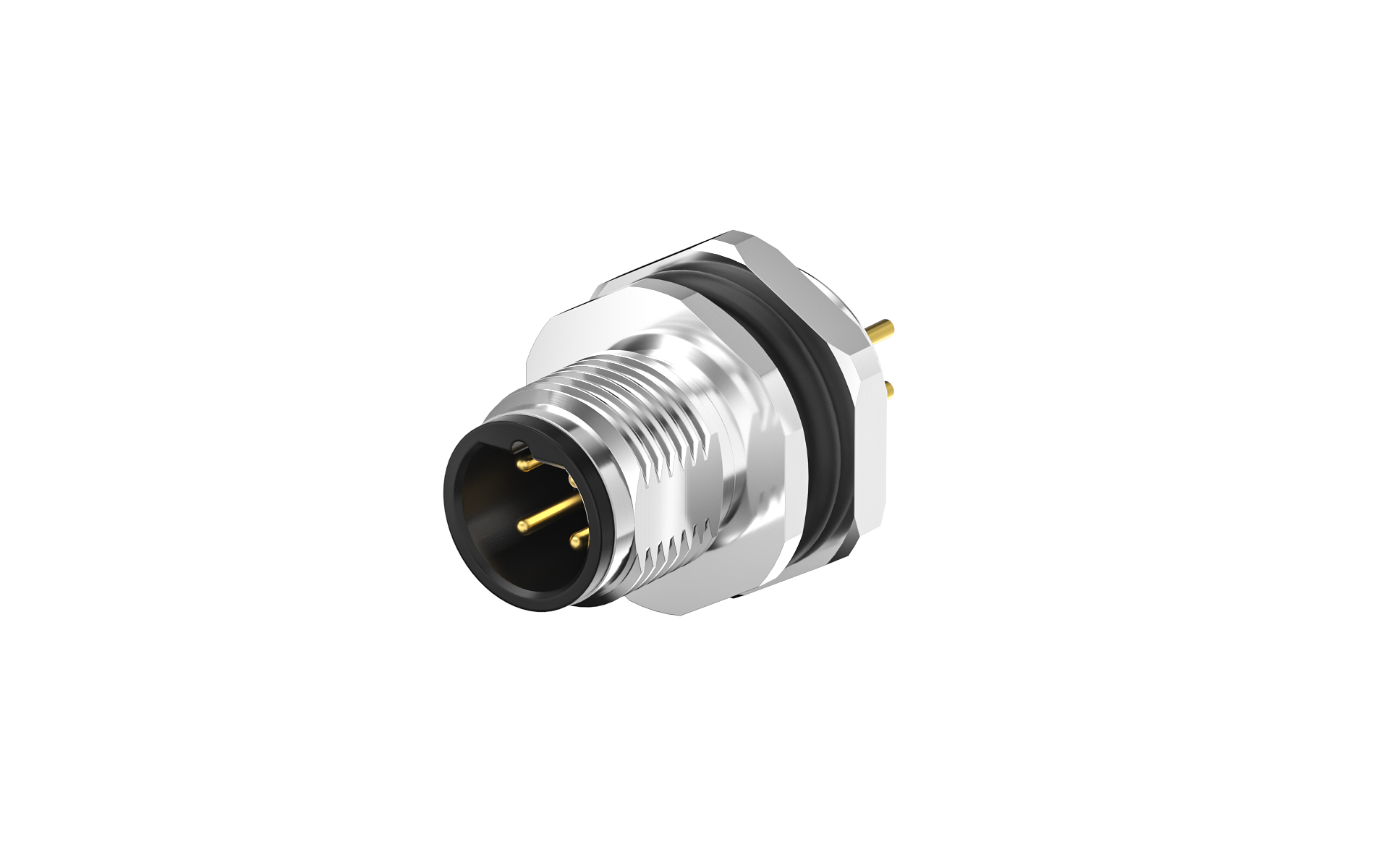

M16X1.5,后锁圆形连接器,公,插座,B编码,4位,针,垂直(180度),通孔焊接
FCR3M12-SB04PSD0-00
M16X1.5, rear lock circular connector, Male, Socket, Bcoding, 4Circuits, pin, Vertical(180°), Through hole
FCR3M12-SB04PSD0-00 Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-07-23
MPQ
35
MOQ
10
Quantity Unit Price
1 $3.676248
10 $3.380058
50 $3.049021
100 $2.805099
500 $2.526332
1000 $2.334679
5000 $2.263703
Category
Product Catalog
Connectors
Product System
M12 Circular Connector
Features
Standard
Style
Socket
Gender
Male
Coding
B coding
Shielded
Non-shielded
Number of Positions
4Circuits
Contacts Type
pin
Thread Spec
M12
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
4A
Voltage(Max)
250V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Fastening Method
Nut
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
Material
Surface Treatment
Plating
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Packaging
Tray

Product Drawings

FCR3M12-SXXXPSD0-00

3D Drawings

FCR3M12-SB04PSD0-00
Plug
M12X1.0 B Coded 4pin, female straight single end, cable length L=2m，unshielded

FCPM12-B0402000-000

M12X1.0 B Coded 4pin, female straight single end, cable length L=2m，unshielded

 M12X1.0 B Coded 4pin, female straight single end, cable length L=2m，shielded

FCPM12-B0402010-000

M12X1.0 B Coded 4pin, female straight single end, cable length L=2m，shielded

 M12X1.0 B Coded 4pin, female straight double ended, cable length L=2m，unshielded

FCTM12-B0402000-000

M12X1.0 B Coded 4pin, female straight double ended, cable length L=2m，unshielded
