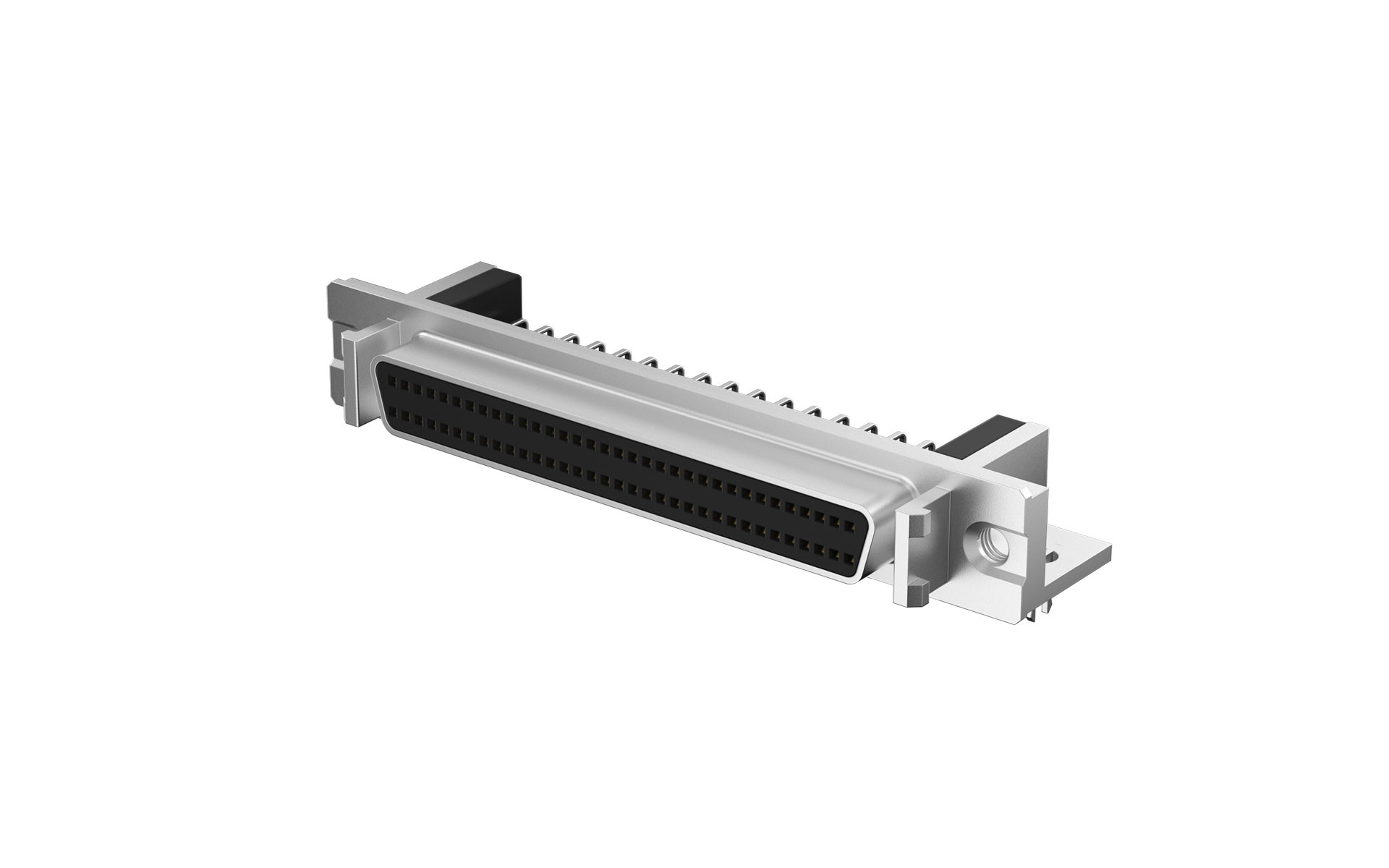

FCS6807-F0DB300K6KB SCSI Connector 90°Angle Female 68Circuits(DIP)

FCS6807-F0DB300K6KB

SCSI Connector 90°Angle Female 68Circuits(DIP)

Product Number：FCS6807-F0DB300K6KB

Production Status： Active

SCSI Connector 90°Angle Female 68Circuits(DIP)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{24.651367\|tradeCurrencySymbol({digits:6})}}
10+	{{23.439004\|tradeCurrencySymbol({digits:6})}}
50+	{{20.408099\|tradeCurrencySymbol({digits:6})}}
100+	{{18.690585\|tradeCurrencySymbol({digits:6})}}
500+	{{16.467921\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 20

Lead time Ship Immediately

MOQ 500

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

SCSI Connector

Product Category

SCSI Connector

Style

Socket

Gender

Female

Type

Type B

Pitch

1.27mm

Number of Positions

68Circuits

Orientation

Right angle(90°)

Colour

Black

Current(Max)

Voltage(Max)

250V

Contact Resistance

35 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

Through hole

Material-Contact

Copper alloy

Plating

Gold on contact, bright tin on tail

Plating Thickness

Gold flash

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FCS6807 Series.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
