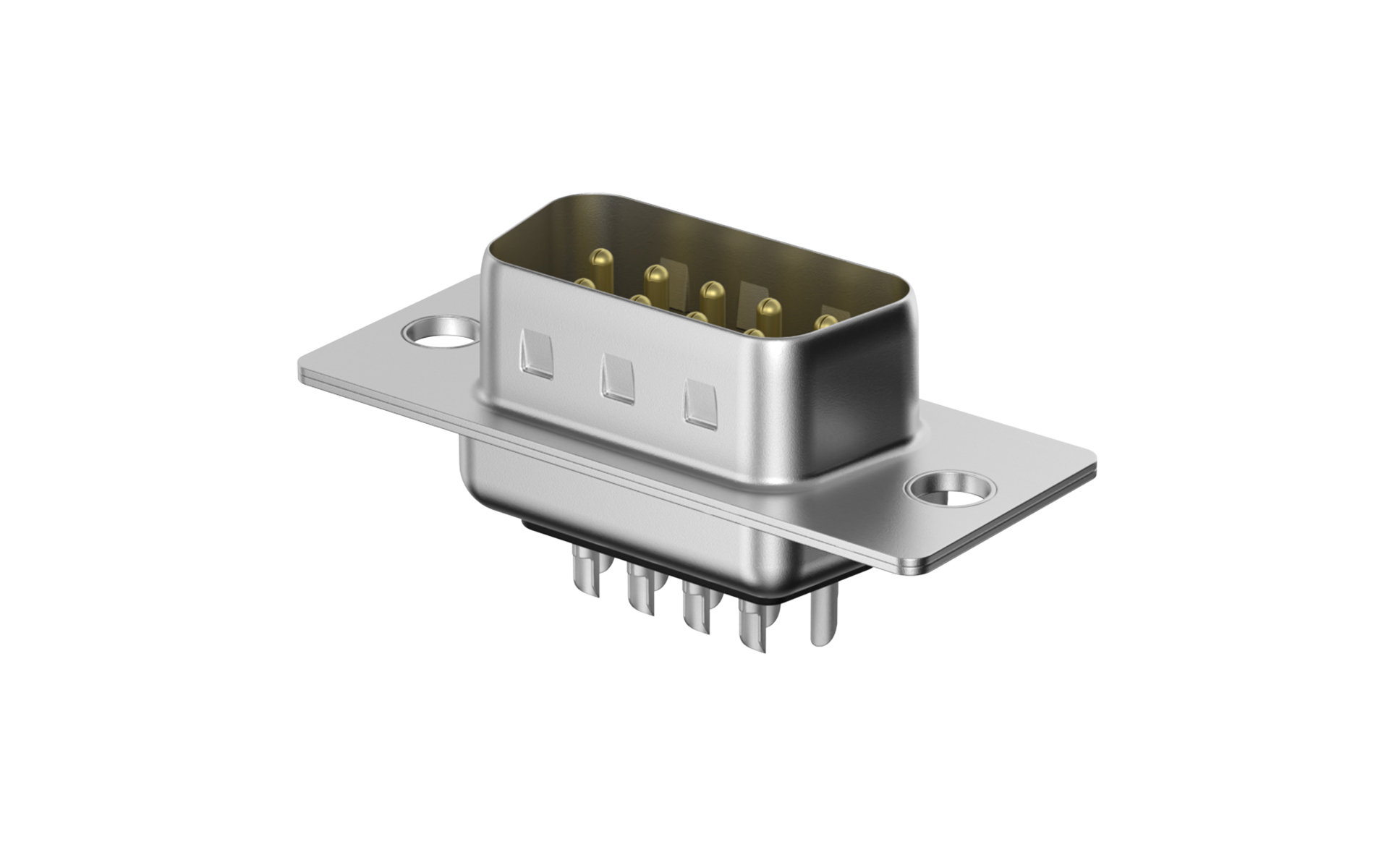

D-SUB 公座 焊线式 9位(黑色)
FDB0905-M0WS300K6KA
D-SUB Male 9Circuits
FDB0905-M0WS300K6KA Copy
Share this product
Stock(pcs)
845
Lead time

≦ 845 In stock

＞ 845 Estimated delivery date 2025-08-20

MPQ
50
MOQ
1000
Quantity Unit Price
1 $0.175036
10 $0.164652
50 $0.143884
100 $0.133500
500 $0.112732
1000 $0.083760
2500 $0.082613
5000 $0.081466
10000 $0.080318
25000 $0.079171
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Stamping pin D-SUB
Style
Plug
Gender
Male
Type
Type A
Row Option
Dual row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
25 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDB0905

3D Drawings

FDB0905-M0WS300K6KA-REF
Assembly shell
D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0902-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0903-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0904-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

FR-4AA-01

D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

 D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits

FVD0902-S2SIB0

D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits
