D-SUB 焊线式 母座 15位(黑色)
FDB1509-F0WS300K6KA

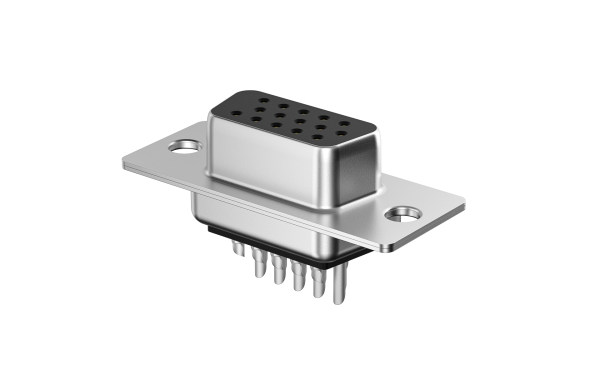

D-SUB Female 15Circuits(Black)
FDB1509-F0WS300K6KA Copy
Share this product
Stock(pcs)
189
Lead time

≦ 189 In stock

＞ 189 Estimated delivery date 2025-12-29

MPQ
50
MOQ
1000
Quantity Unit Price
1 $0.307607
10 $0.259415
50 $0.221477
100 $0.201995
500 $0.177387
1000 $0.138423
5000 $0.136372
10000 $0.134322

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Stamping pin D-SUB
Style
Plug
Gender
Female
Type
Type A
Row Option
3 rows
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
25 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDB1509_Series
Assembly shell
D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0902-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0903-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0904-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

FR-4AA-01

D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

 D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits

FVD0902-S2SIB0

D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits
