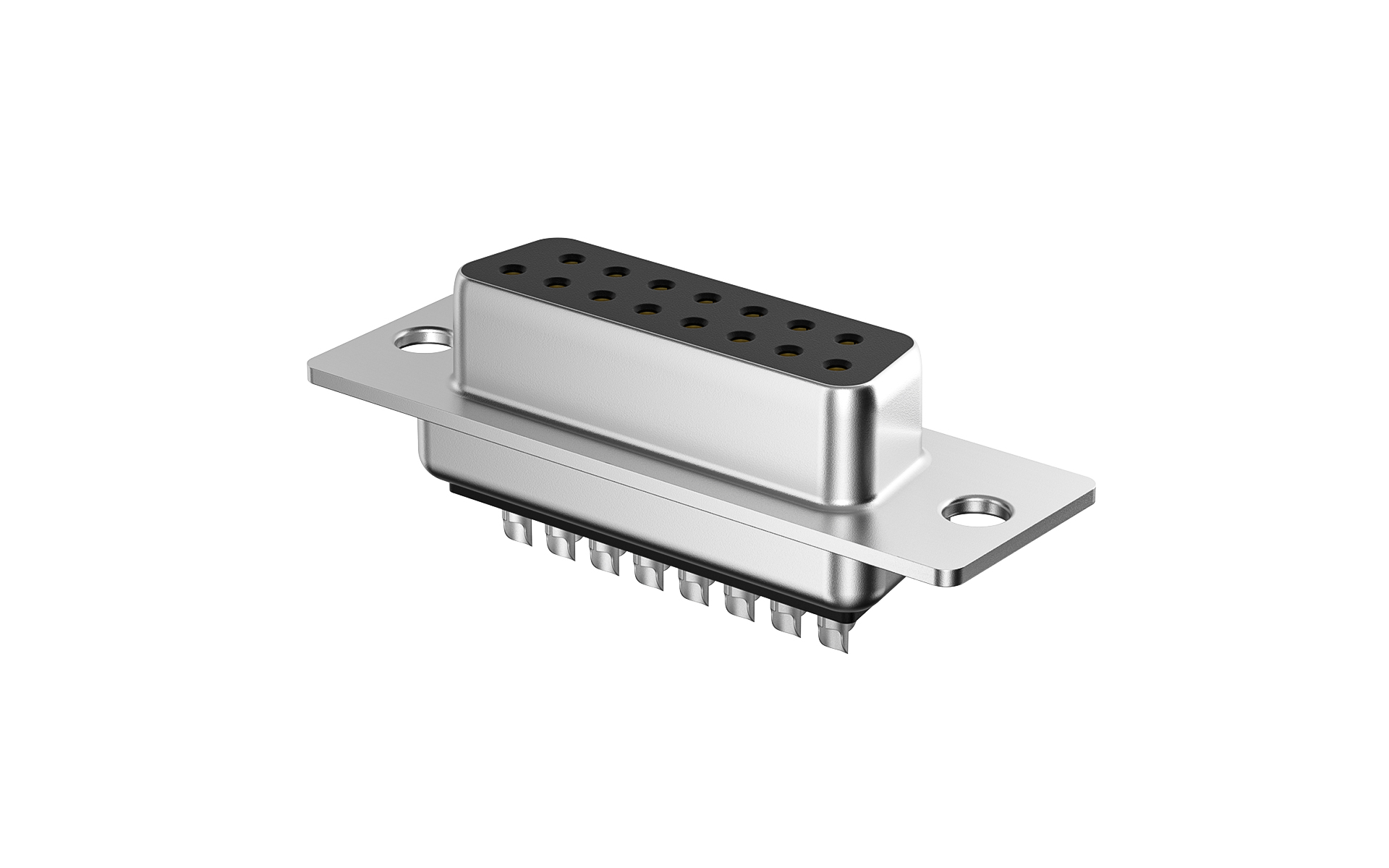

D-SUB 焊线式 母座 15位 (黑色)
FDB1511-F0WS300K6KA
D-SUB Female 15Circuits Welding (Black)
FDB1511-F0WS300K6KA Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-14
MPQ
50
MOQ
1000
Quantity Unit Price
1 $0.312215
10 $0.294459
50 $0.258948
100 $0.241192
500 $0.205680
1000 $0.160464
2500 $0.158258
5000 $0.156052
10000 $0.153847
25000 $0.151641

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Stamping pin D-SUB
Style
Plug
Gender
Female
Type
Type A
Row Option
Dual row
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
25 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDB1511-F0

3D Drawings

FDB1511-F0WS300K6KA-REF
Assembly shell
D-SUB metal hood, Applies to 15 circuits and HD26 circuits

FDB1501-C200B

D-SUB metal hood, Applies to 15 circuits and HD26 circuits

 D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

FR-4AA-05A

D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

 D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

FVD1505-S2SIB0

D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

 D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits

FVD1506-S1SIB0

D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits
