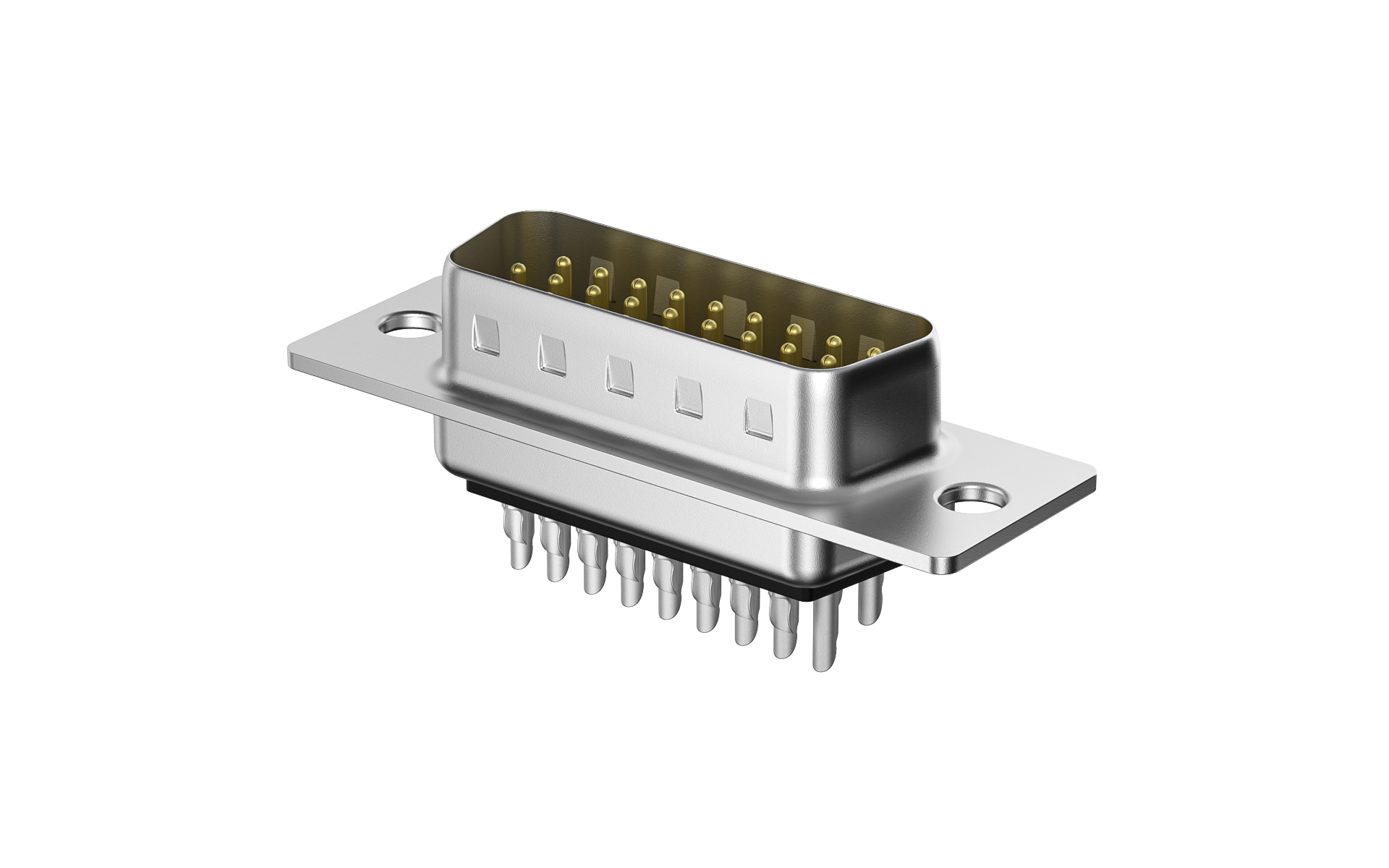

D-SUB 焊线式 公座 26位(黑色)
FDB2604-M0WS300K6KA
D-SUB Male 26Circuits(Black)
FDB2604-M0WS300K6KA Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-12-29
MPQ
50
MOQ
1000
Quantity Unit Price
1 $0.494370
10 $0.416919
50 $0.355947
100 $0.324637
500 $0.285087
1000 $0.222467
5000 $0.219171
10000 $0.215875

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Stamping pin D-SUB
Style
Plug
Gender
Male
Type
Type A
Row Option
3 rows
Number of Positions
26Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
25 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDB2604

3D Drawings

FDB2604-M0WS300K6KA-REF
Assembly shell
D-SUB metal hood, Applies to 15 circuits and HD26 circuits

FDB1501-C200B

D-SUB metal hood, Applies to 15 circuits and HD26 circuits

 D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

FR-4AA-05A

D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

 D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

FVD1505-S2SIB0

D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

 D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits

FVD1506-S1SIB0

D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits
