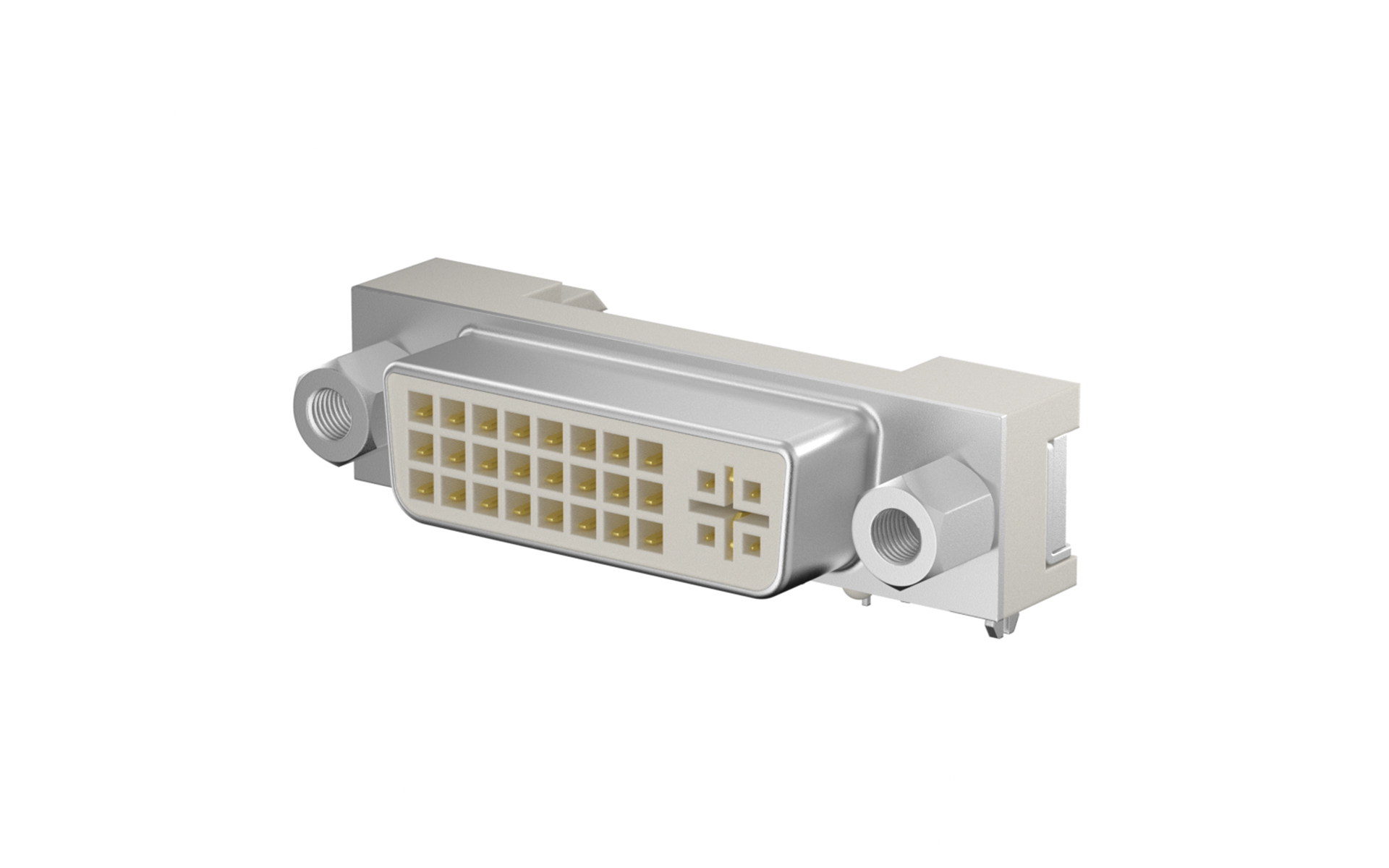

FDI2401-F0DB300W1K-C DVI Female (24+5)Pin DIP 90° White

FDI2401-F0DB300W1K-C

DVI Female (24+5)Pin DIP 90° White

Product Number：FDI2401-F0DB300W1K-C

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{3.474269\|tradeCurrencySymbol({digits:6})}}
10+	{{3.276686\|tradeCurrencySymbol({digits:6})}}
50+	{{2.881519\|tradeCurrencySymbol({digits:6})}}
100+	{{2.683936\|tradeCurrencySymbol({digits:6})}}
500+	{{2.288771\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 5000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Audio/Video Connector

Product Category

DVI

Style

Socket

Gender

Female

Type

Type C

Number of Positions

29Circuits

Orientation

Right angle(90°)

Colour

White

Current(Max)

1.5A

Voltage(Max)

250V

Contact Resistance

30 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

Through hole

Material-Contact

Copper alloy

Plating

Gold on contact, bright tin on tail

Plating Thickness

Gold flash

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FDI2401 Series.pdf

3D Drawings

FDI2401-F0DB300W1K-C.STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
