FDI3301-MFDB300GWKA
组合连接器D-SUB公座9位+DVI 母座(24+1)位 插板 90° 铆鱼叉 锁螺丝 绿色+白色

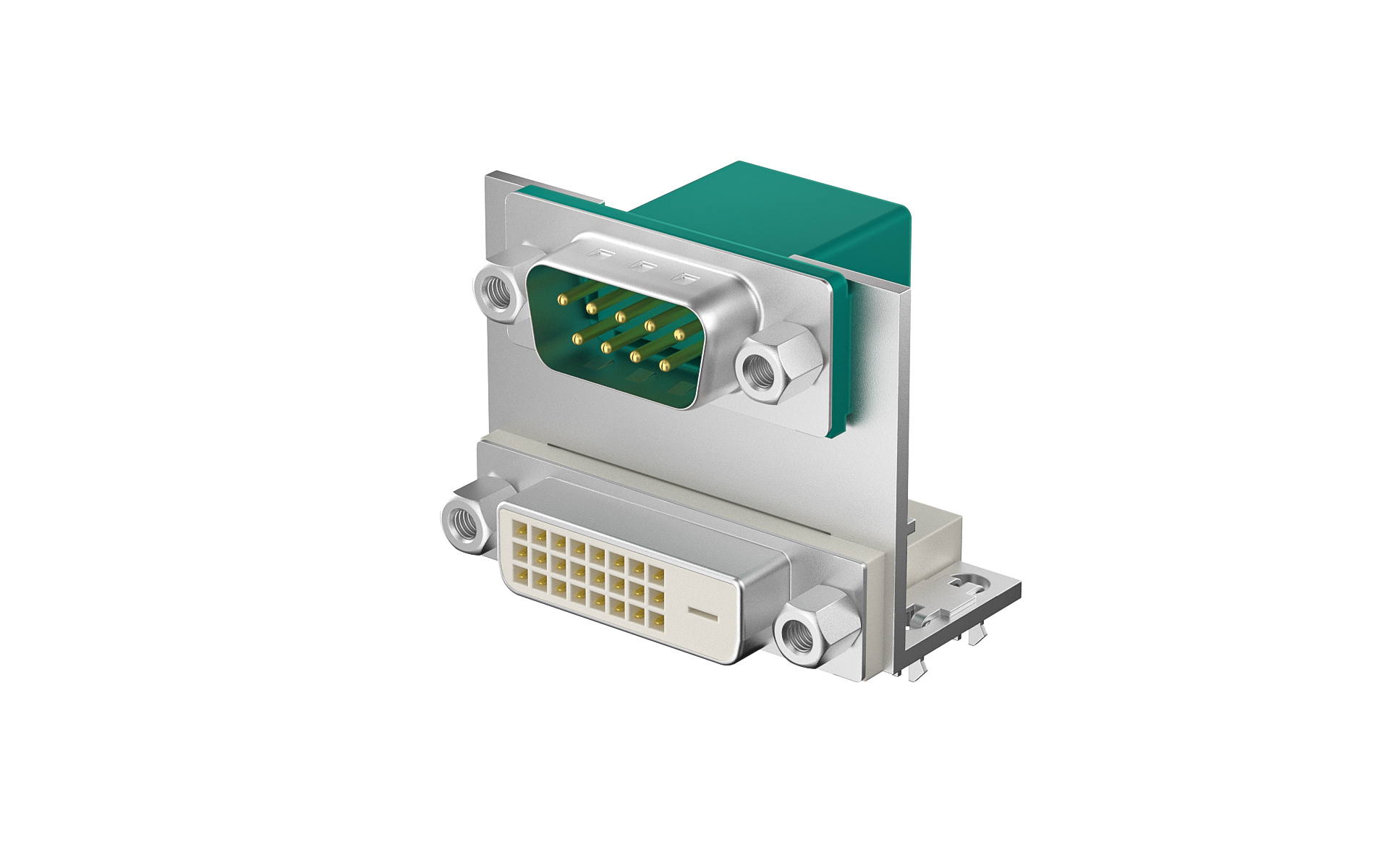

Combo D-SUB 9/Male Green+DVI (24+1)/Female White 90°angle DIP
Product Number：FDI3301-MFDB300GWKA
Production Status： Active
Combo D-SUB 9/Male Green+DVI (24+1)/Female White 90°angle DIP
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{18.11025|tradeCurrencySymbol({digits:6})}}
10+ {{17.121178|tradeCurrencySymbol({digits:6})}}
50+ {{15.143034|tradeCurrencySymbol({digits:6})}}
100+ {{14.153962|tradeCurrencySymbol({digits:6})}}
500+ {{12.175818|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 7
Lead time Ship Immediately
MOQ 5005
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Audio/Video Connector
Product Category
DVI
Style
Socket
Gender
Mixed
Type
Type A
Number of Positions
33Circuits
Orientation
Right angle(90°)
Colour
Green-white
Current(Max)
1.5A
Voltage(Max)
40V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mounting Style
Through hole
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FDI3301.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
