FDL01-FSB300K6M
DISPLAY PORT 20Pin 母SMT 外壳 DIP

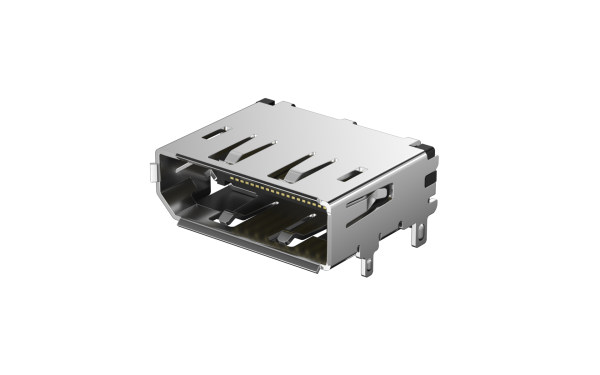

DISPLAY PORT 20Pin Female SMT Black
Product Number：FDL01-FSB300K6M
Production Status： Active
DISPLAY PORT 20Pin Female SMT Black
DISPLAY PORT 20Pin Female SMT Black
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{6.920088|tradeCurrencySymbol({digits:6})}}
10+ {{6.471075|tradeCurrencySymbol({digits:6})}}
50+ {{5.652286|tradeCurrencySymbol({digits:6})}}
100+ {{5.28251|tradeCurrencySymbol({digits:6})}}
500+ {{4.516546|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 707
Lead time Ship Immediately
MOQ 2000
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Audio/Video Connector
Product Category
Display Port
Style
Socket
Gender
Female
Version
1.4
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Black
Current(Max)
0.5A
Voltage(Max)
40V
Contact Resistance
30 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mounting Style
SMT
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FDL01.pdf

3D Drawings

FDL01-FSB300K6M-REF.STEP
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
