车针D-SUB 母座 双排 焊线式 9位(1μ'')
FDM0903-F0WS101W1K

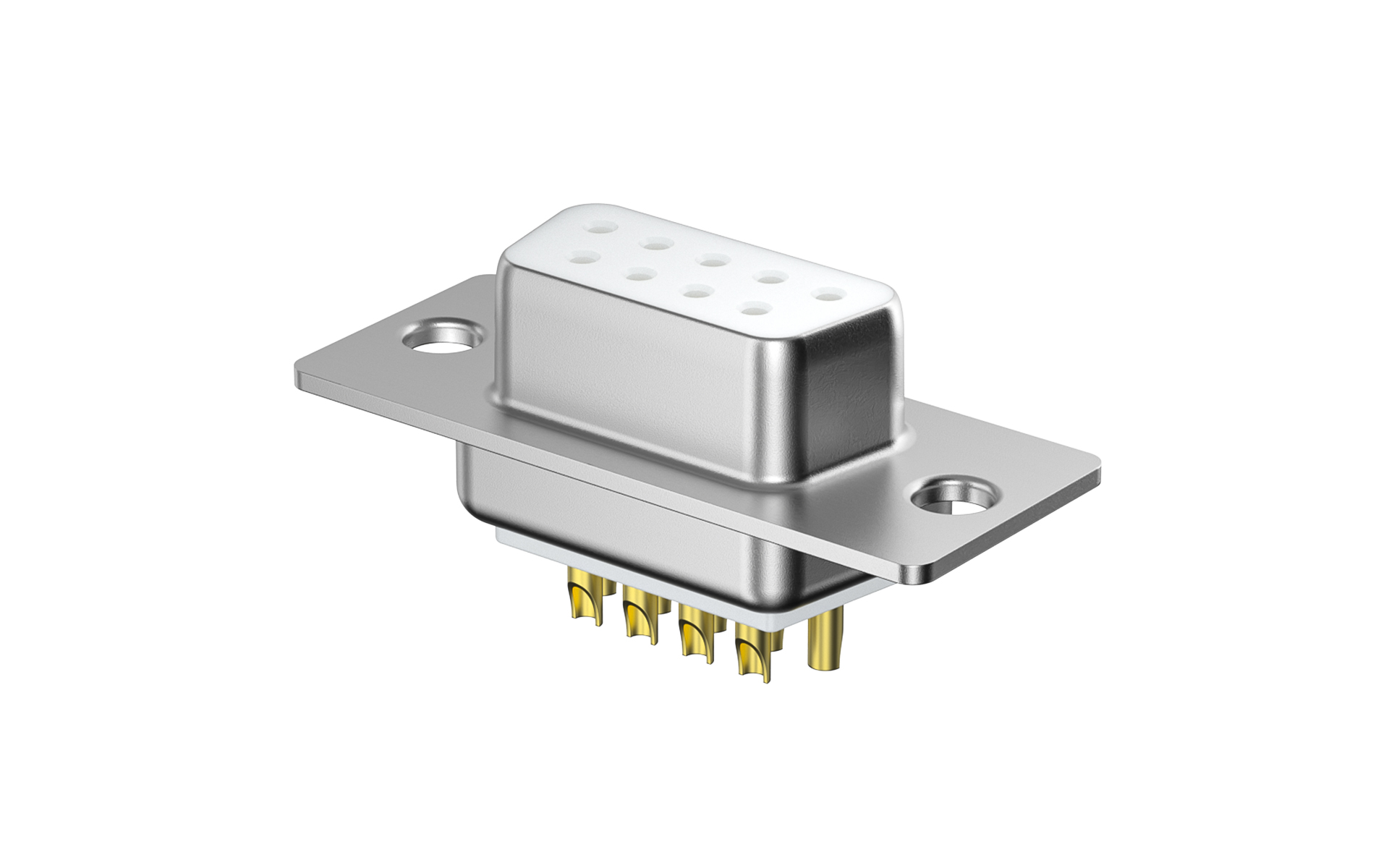

Machined pin D-SUB Female 9Circuits
FDM0903-F0WS101W1K Copy
Share this product
Stock(pcs)
481
Lead time

≦ 481 In stock

＞ 481 Estimated delivery date 2025-10-14

MPQ
50
MOQ
100
Quantity Unit Price
1 $0.957773
10 $0.904622
50 $0.798320
100 $0.745169
500 $0.638868
1000 $0.510390
2500 $0.503350
5000 $0.496310
10000 $0.489270
25000 $0.482230

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Female
Row Option
Dual row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDM0903-F0

3D Drawings

FDM0903-F0WS101W1K-REF
Assembly shell
D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0902-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0903-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0904-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

FR-4AA-01

D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

 D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits

FVD0902-S2SIB0

D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits
