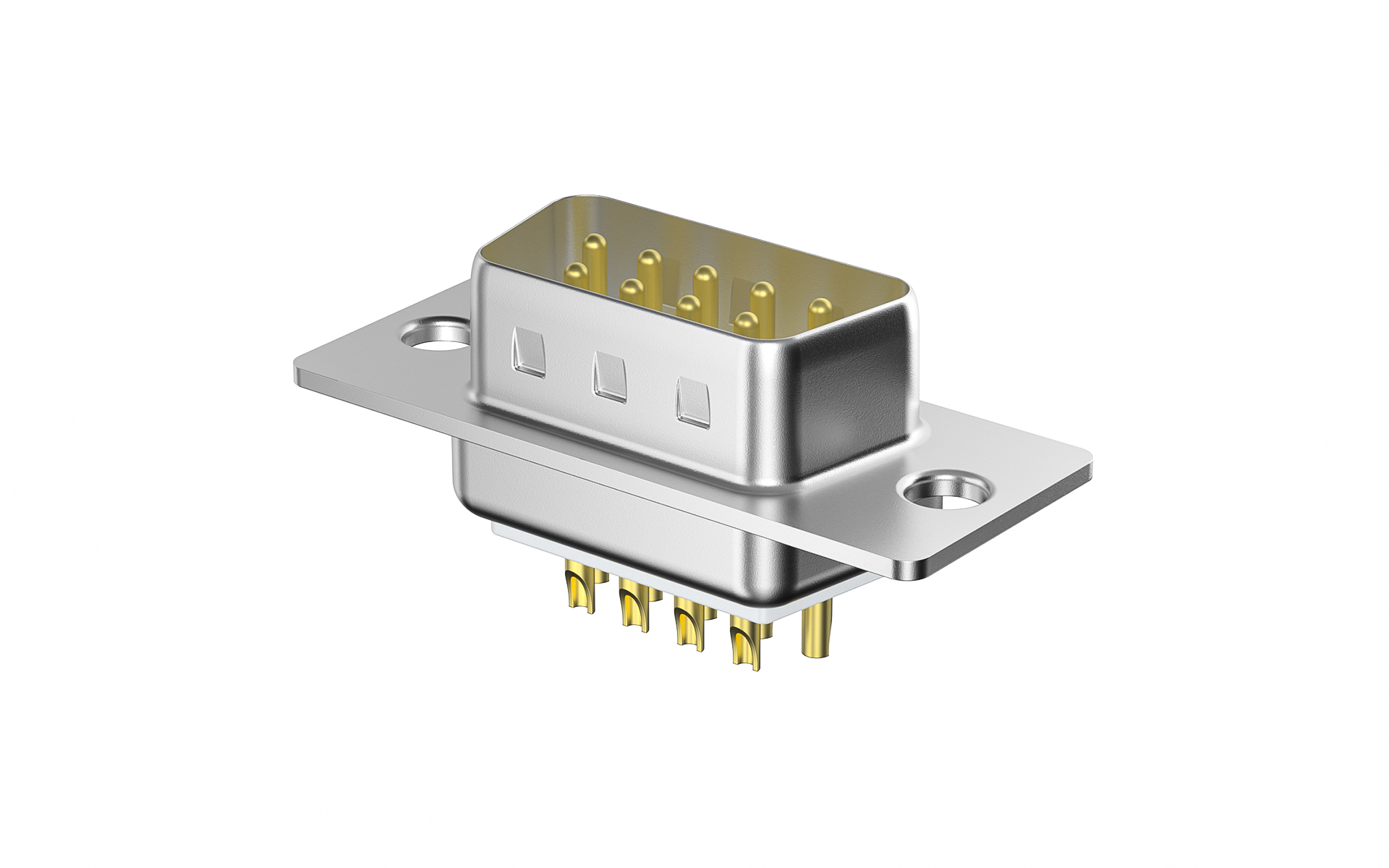

车针D-SUB 公座 双排 焊线式 9位(3μ'')
FDM0903-M0WS103W1K
Machined pin D-SUB Male 9Circuits
FDM0903-M0WS103W1K Copy
Share this product
Stock(pcs)
300
Lead time

≦ 300 In stock

＞ 300 Estimated delivery date 2025-10-14

MPQ
100
MOQ
500
Quantity Unit Price
1 $1.249874
10 $1.181241
50 $1.043974
100 $0.975341
500 $0.838074
1000 $0.674661
2500 $0.665323
5000 $0.655986
10000 $0.646648
25000 $0.637310

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Row Option
Dual row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDM0903-M0
Assembly shell
D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0902-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0903-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0904-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

FR-4AA-01

D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

 D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits

FVD0902-S2SIB0

D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits
