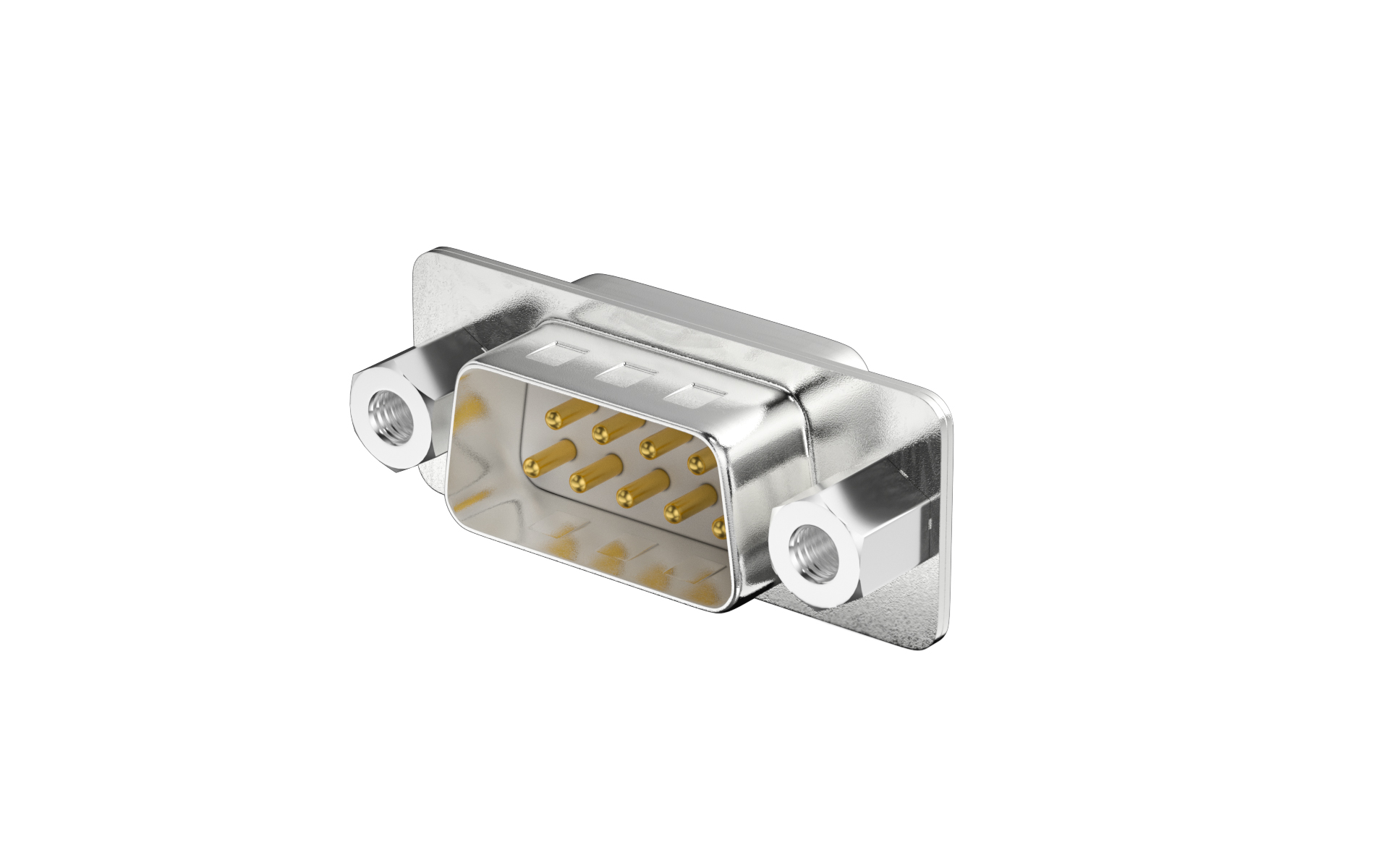

车针D-SUB 公座 双排 焊线式 9位(5μ'')
FDM0903-M0WS105W1K-B
Machined pin D-SUB Male 9Circuits(5μ'')
FDM0903-M0WS105W1K-B Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-08-21
MPQ
50
MOQ
500
Quantity Unit Price
1 $1.638844
10 $1.549095
50 $1.369597
100 $1.279848
500 $1.100349
1000 $0.885197
2500 $0.872903
5000 $0.860608
10000 $0.848314
25000 $0.836020
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Type
Type B
Row Option
Dual row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.125μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDM0903-M0
Assembly shell
D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0902-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0903-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0904-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

FR-4AA-01

D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

 D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits

FVD0902-S2SIB0

D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits
