车针D-SUB 公座 双排 焊线式 9位(15μ'')
FDM0903-M0WS115W1K

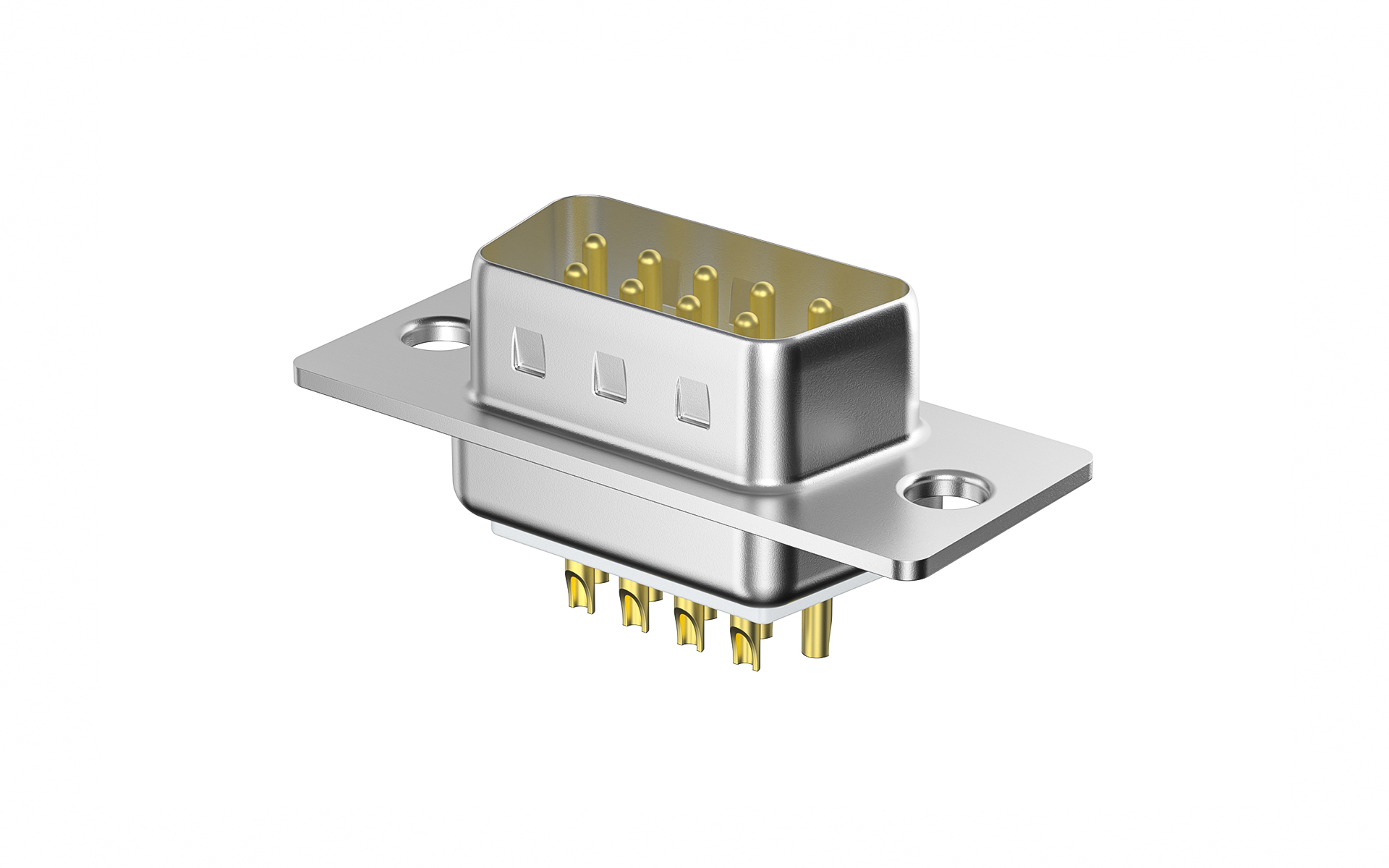

Machined pin D-SUB Male 9Circuits(15μ'')
FDM0903-M0WS115W1K Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-14
MPQ
50
MOQ
500
Quantity Unit Price
1 $2.312945
10 $2.186626
50 $1.933988
100 $1.807669
500 $1.555031
1000 $1.250123
2500 $1.232699
5000 $1.215276
10000 $1.197853
25000 $1.180429

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Row Option
Dual row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.375μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDM0903-M0
Assembly shell
D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0902-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0903-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0904-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

FR-4AA-01

D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

 D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits

FVD0902-S2SIB0

D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits
