FDM1503-F0WS101W1K-B Machined pin D-SUB 15Circuits, Female, Welding, 1μ"

FDM1503-F0WS101W1K-B

Machined pin D-SUB 15Circuits, Female, Welding, 1μ"

Product Number：FDM1503-F0WS101W1K-B

Production Status： Active

Machined pin D-SUB 15Circuits, Female, Welding, 1μ

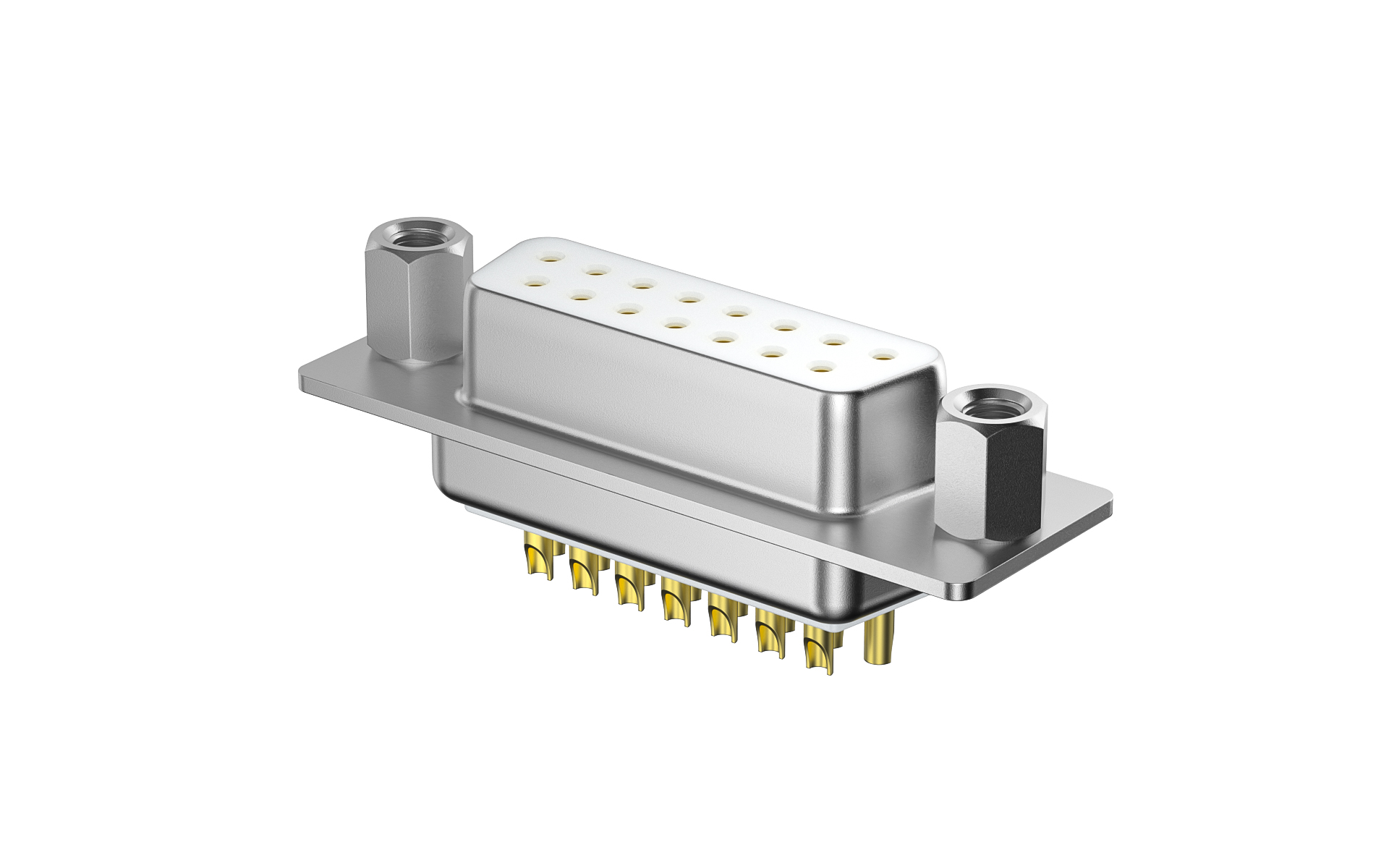

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{15.417871\|tradeCurrencySymbol({digits:6})}}
10+	{{14.575841\|tradeCurrencySymbol({digits:6})}}
50+	{{12.891779\|tradeCurrencySymbol({digits:6})}}
100+	{{12.049748\|tradeCurrencySymbol({digits:6})}}
500+	{{10.365688\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 64

Lead time Ship Immediately

MOQ 500

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Machined pin D-SUB

Style

Plug

Gender

Female

Type

Type B

Row Option

Dual row

Number of Positions

15Circuits

Orientation

Vertical(180°)

Colour

White

Current(Max)

7.5A

Voltage(Max)

300V

Contact Resistance

5 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Waterproof / Dustproof

Mounting Style

Soldering

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FDM1503-F0.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
