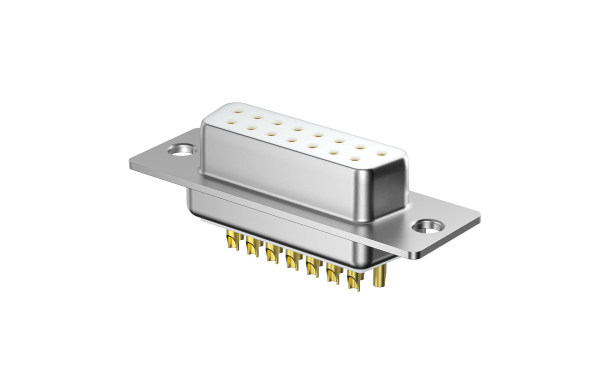

车针D-SUB 母座 双排 焊线式 15位(3μ'')
FDM1503-F0WS103W1K
Machined pin D-SUB Female 15Circuits
FDM1503-F0WS103W1K Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-05-29
MPQ
70
MOQ
560
Quantity Unit Price
1 $2.506951
10 $2.370037
50 $2.096208
100 $1.959293
500 $1.685464
1000 $1.354981
2500 $1.336096
5000 $1.317212
10000 $1.298327
25000 $1.279442
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Female
Row Option
Dual row
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDM1503-F0.pdf
