车针D-SUB 公座 双排 焊线式 15位(1μ'')
FDM1503-M0WS100W1K

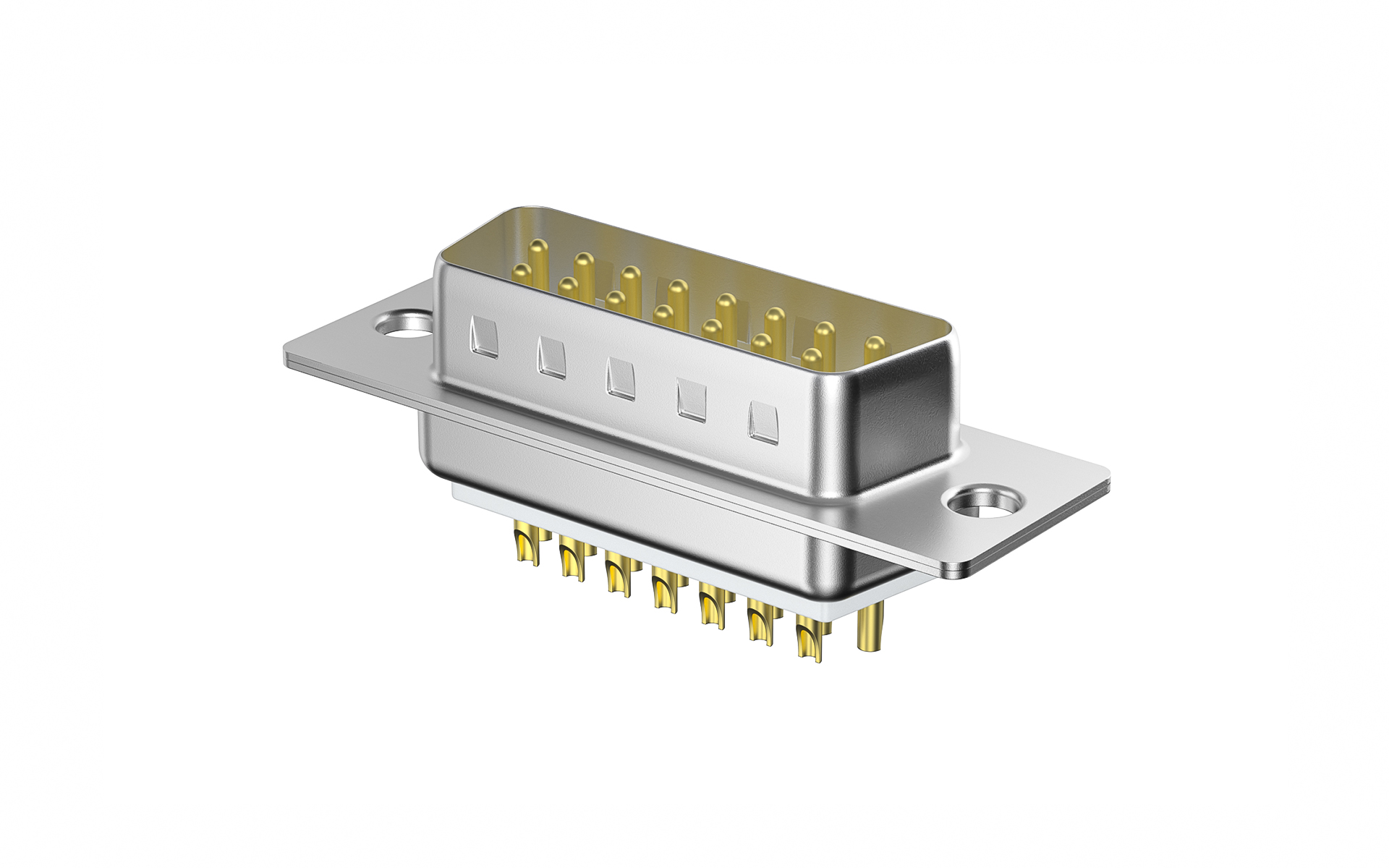

Machined pin D-SUB Male 15Circuits
FDM1503-M0WS100W1K Copy
Share this product
Stock(pcs)
43
Lead time

≦ 43 In stock

＞ 43 Estimated delivery date 2025-10-14

MPQ
70
MOQ
560
Quantity Unit Price
1 $1.427014
10 $1.348653
50 $1.191932
100 $1.113572
500 $0.956851
1000 $0.770278
2500 $0.759617
5000 $0.748956
10000 $0.738294
25000 $0.727633

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Row Option
Dual row
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDM1503-M0.pdf

3D Drawings

FDM1503-M0WS100W1K-REF
Assembly shell
D-SUB metal hood, Applies to 15 circuits and HD26 circuits

FDB1501-C200B

D-SUB metal hood, Applies to 15 circuits and HD26 circuits

 D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

FR-4AA-05A

D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

 D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

FVD1505-S2SIB0

D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

 D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits

FVD1506-S1SIB0

D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits
