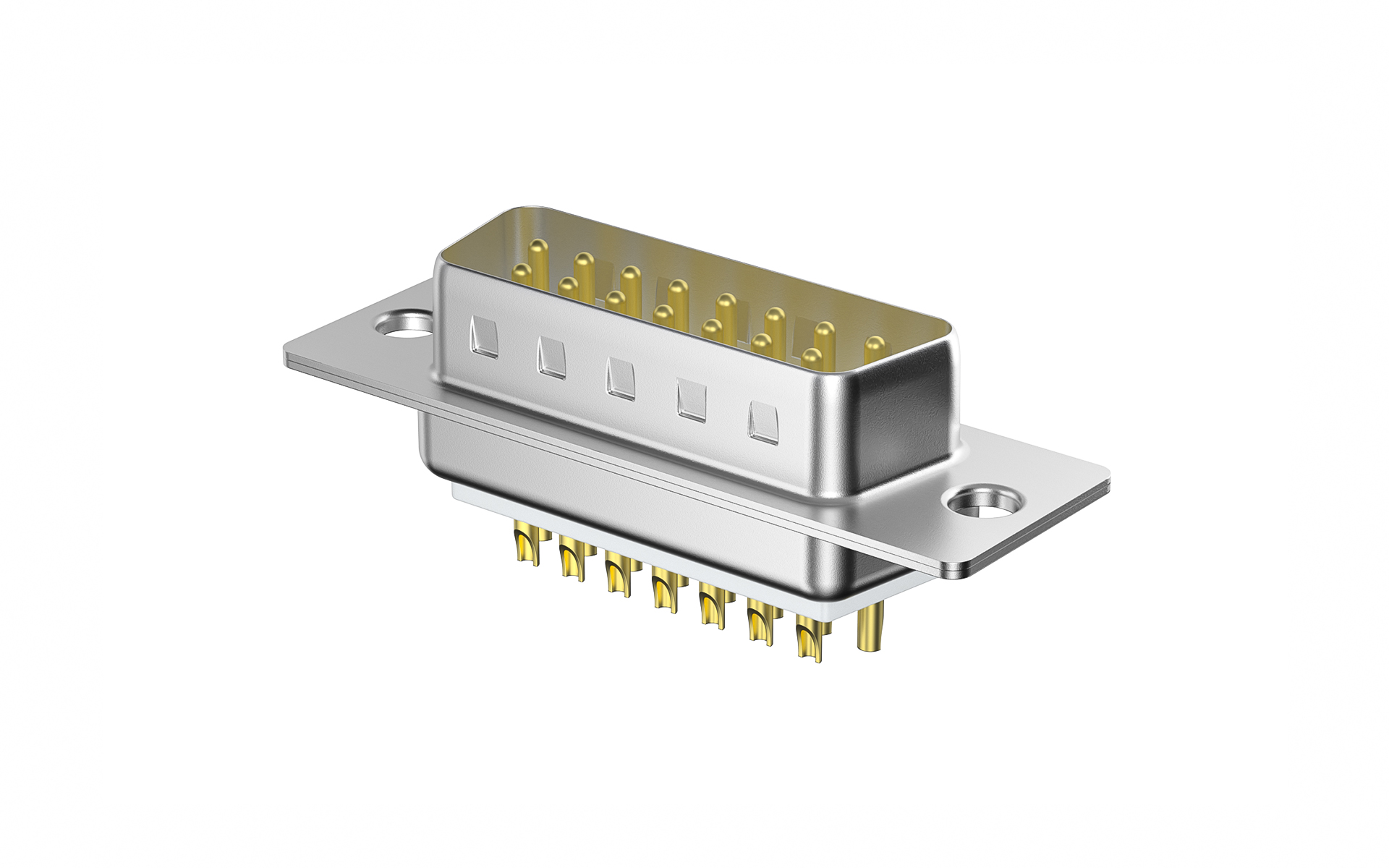

车针D-SUB 双排 15位 ,公座 ,焊线式 ,1μ"
FDM1503-M0WS101W1K
Machined pin D-SUB 15Circuits, Male, Welding, 1μ"
FDM1503-M0WS101W1K Copy
Share this product
Stock(pcs)
82
Lead time

≦ 82 In stock

＞ 82 Estimated delivery date 2025-05-29

MPQ
70
MOQ
560
Quantity Unit Price
1 $1.532484
10 $1.448332
50 $1.280028
100 $1.195876
500 $1.027571
1000 $0.827209
2500 $0.815760
5000 $0.804311
10000 $0.792862
25000 $0.781412
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Row Option
Dual row
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDM1503-M0.pdf
Assembly shell
D-SUB metal hood, Applies to 15 circuits and HD26 circuits

FDB1501-C200B

D-SUB metal hood, Applies to 15 circuits and HD26 circuits

 D-SUB metal hood, Applies to 15 circuits and HD26 circuits

FDB1501-C200BA

D-SUB metal hood, Applies to 15 circuits and HD26 circuits

 D-SUB metal hood, Applies to 15 circuits and HD26 circuits

FDB1502-C200B

D-SUB metal hood, Applies to 15 circuits and HD26 circuits

 D-SUB Zinc Alloy Backshell , Applies to 15 circuits and HD26 circuits

FR-1DB-15

D-SUB Zinc Alloy Backshell , Applies to 15 circuits and HD26 circuits

 D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

FR-4AA-05A

D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

 D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

FR-DB-15D

D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

 D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

FVD1503-S2SIB0

D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

 D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

FVD1505-S2SIB0

D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

 D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits

FVD1506-S1SIB0

D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits
