车针D-SUB 公座 三排 焊线式 15位(3μ'')
FDM1511-M0WS103W1K

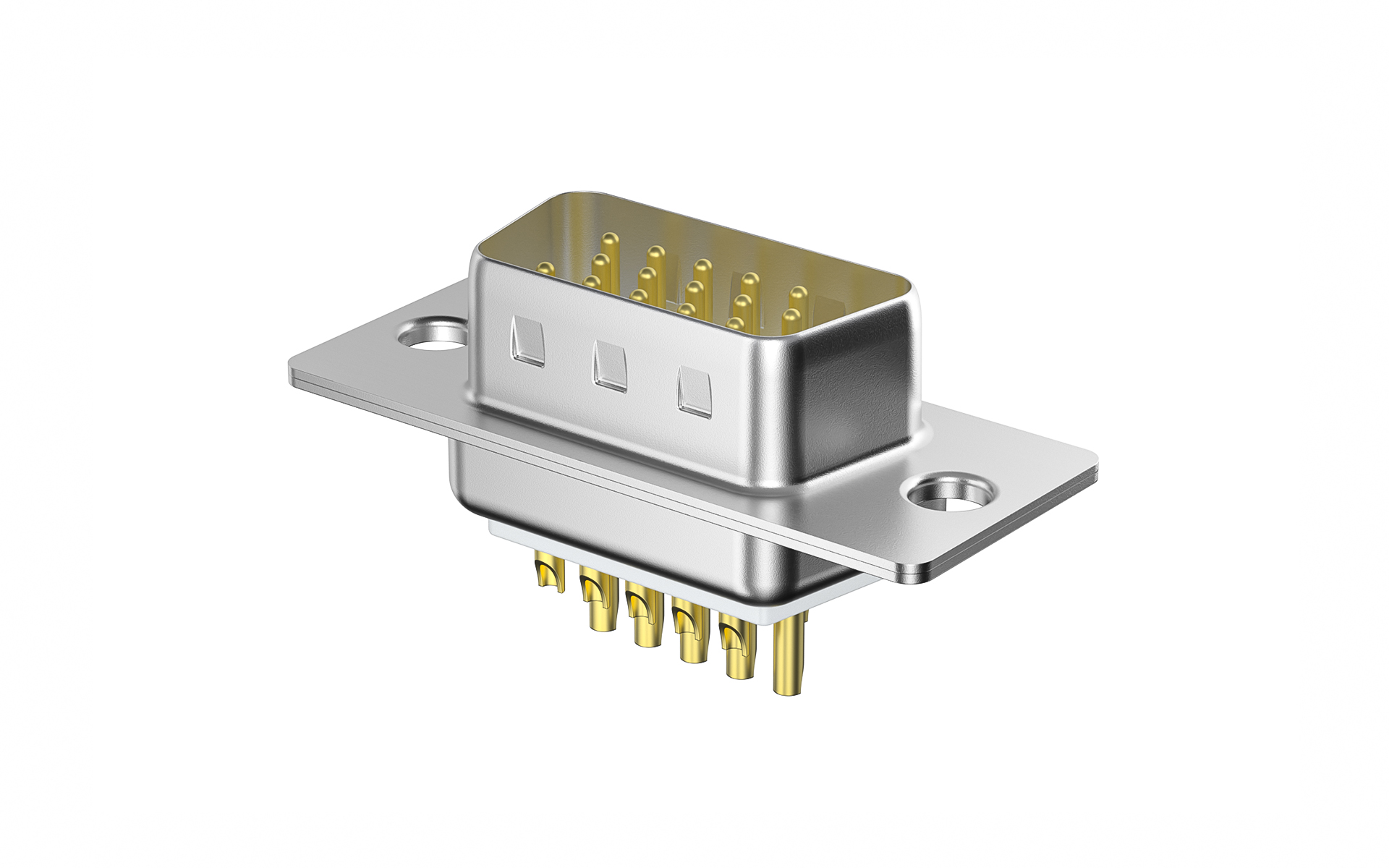

Machined pin D-SUB Male 15Circuits
FDM1511-M0WS103W1K Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-14
MPQ
100
MOQ
500
Quantity Unit Price
1 $1.987901
10 $1.879036
50 $1.661307
100 $1.552442
500 $1.334712
1000 $1.073735
2500 $1.058822
5000 $1.043909
10000 $1.028996
25000 $1.014083

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Row Option
3 rows
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
30 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDM1511-M0
Assembly shell
D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0902-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0903-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB metal hood, Applies to 9 circuits and HD15 circuits

FDB0904-C200B

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

 D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

FR-4AA-01

D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

 D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits

FVD0902-S2SIB0

D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits
