车针D-SUB 公座 三排 焊线式 26位(1μ'')

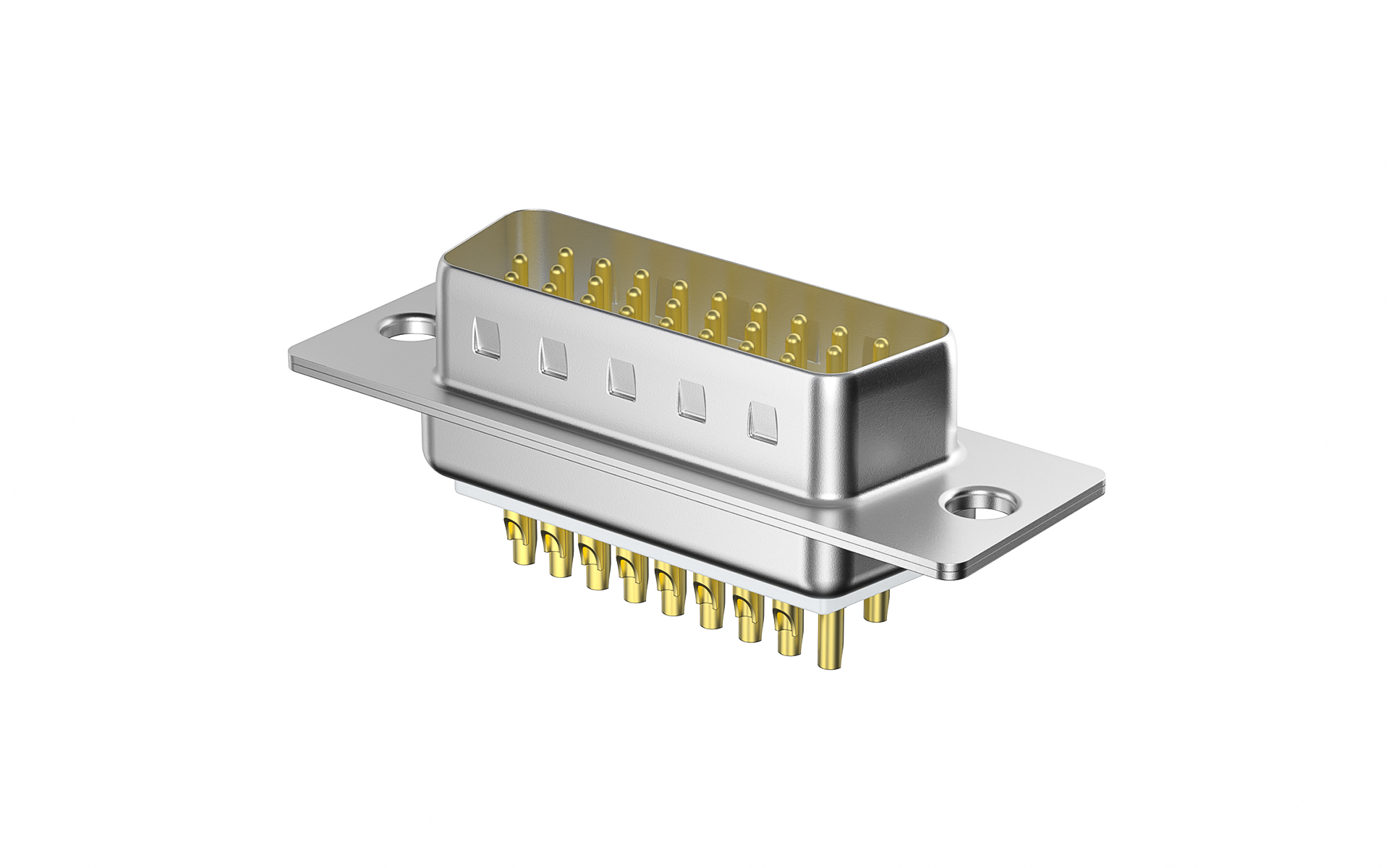

FDM2611-M0WS101W1K
Machined pin D-SUB Male 26Circuits
FDM2611-M0WS101W1K Copy
Share this product
Stock(pcs)
166
Lead time

≦ 166 In stock

＞ 166 Estimated delivery date 2025-10-14

MPQ
70
MOQ
560
Quantity Unit Price
1 $2.676776
10 $2.530991
50 $2.239421
100 $2.093636
500 $1.802066
1000 $1.447727
2500 $1.427479
5000 $1.407231
10000 $1.386983
25000 $1.366735

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Row Option
3 rows
Number of Positions
26Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
5A
Voltage(Max)
300V
Contact Resistance
30 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDM2611-M0
Assembly shell
D-SUB metal hood, Applies to 15 circuits and HD26 circuits

FDB1501-C200B

D-SUB metal hood, Applies to 15 circuits and HD26 circuits

 D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

FR-4AA-05A

D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

 D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

FVD1505-S2SIB0

D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

 D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits

FVD1506-S1SIB0

D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits
