FDP0209-F0DB103K6KC
大电流D-SUB 90°插件 母座 2位(3μ'')(30A)
Hight Current D-sub 90°Angle Female 2Circuits(30A)
Product Number：FDP0209-F0DB103K6KC
Production Status： Active

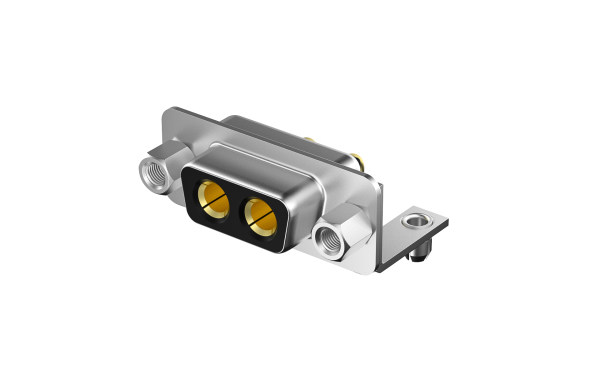

Hight Current D-sub 90°Angle Female 2Circuits(30A)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{28.762012|tradeCurrencySymbol({digits:6})}}
10+ {{27.204343|tradeCurrencySymbol({digits:6})}}
50+ {{24.089008|tradeCurrencySymbol({digits:6})}}
100+ {{22.531339|tradeCurrencySymbol({digits:6})}}
500+ {{19.416004|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 500
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Mixed high current D-SUB W-series
Style
Socket
Gender
Female
Type
Type C
Row Option
Single row
Number of Positions
2Circuits
Contact Layout
2W2
Orientation
Right angle(90°)
Colour
Black
Current(Max)
30A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
No
Mounting Style
Through hole
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FDP0209-F.pdf

3D Drawings

FDP0209-F0DB103K6KC-REF.STEP
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
