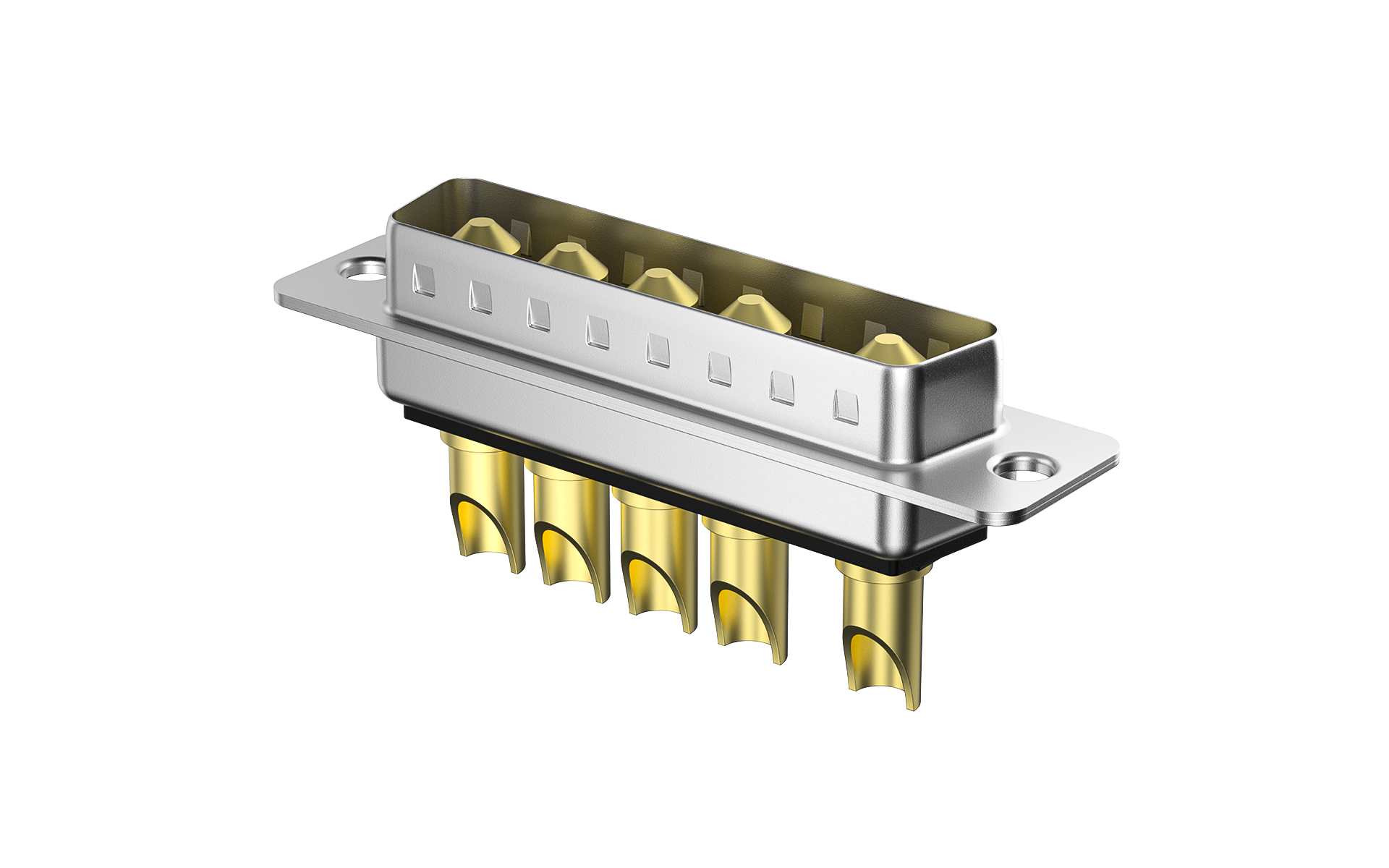

FDP0502-M0WS103K6KC Hight Current D-sub 5Circuits(5W5), Male, Welding, 3μ"(30A)

FDP0502-M0WS103K6KC

Hight Current D-sub 5Circuits(5W5), Male, Welding, 3μ"(30A)

Product Number：FDP0502-M0WS103K6KC

Production Status： Active

Hight Current D-sub 5Circuits(5W5), Male, Welding, 3μ

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{38.202248\|tradeCurrencySymbol({digits:6})}}
10+	{{36.151219\|tradeCurrencySymbol({digits:6})}}
50+	{{32.049163\|tradeCurrencySymbol({digits:6})}}
100+	{{29.998134\|tradeCurrencySymbol({digits:6})}}
500+	{{25.896078\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 500

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Mixed high current D-SUB W-series

Style

Plug

Gender

Male

Type

Type C

Row Option

Single row

Number of Positions

5Circuits

Contact Layout

5W5

Orientation

Vertical(180°)

Colour

Black

Current(Max)

30A

Voltage(Max)

300V

Contact Resistance

5 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Waterproof / Dustproof

Mounting Style

Soldering

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.075μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FDP0502-M.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
