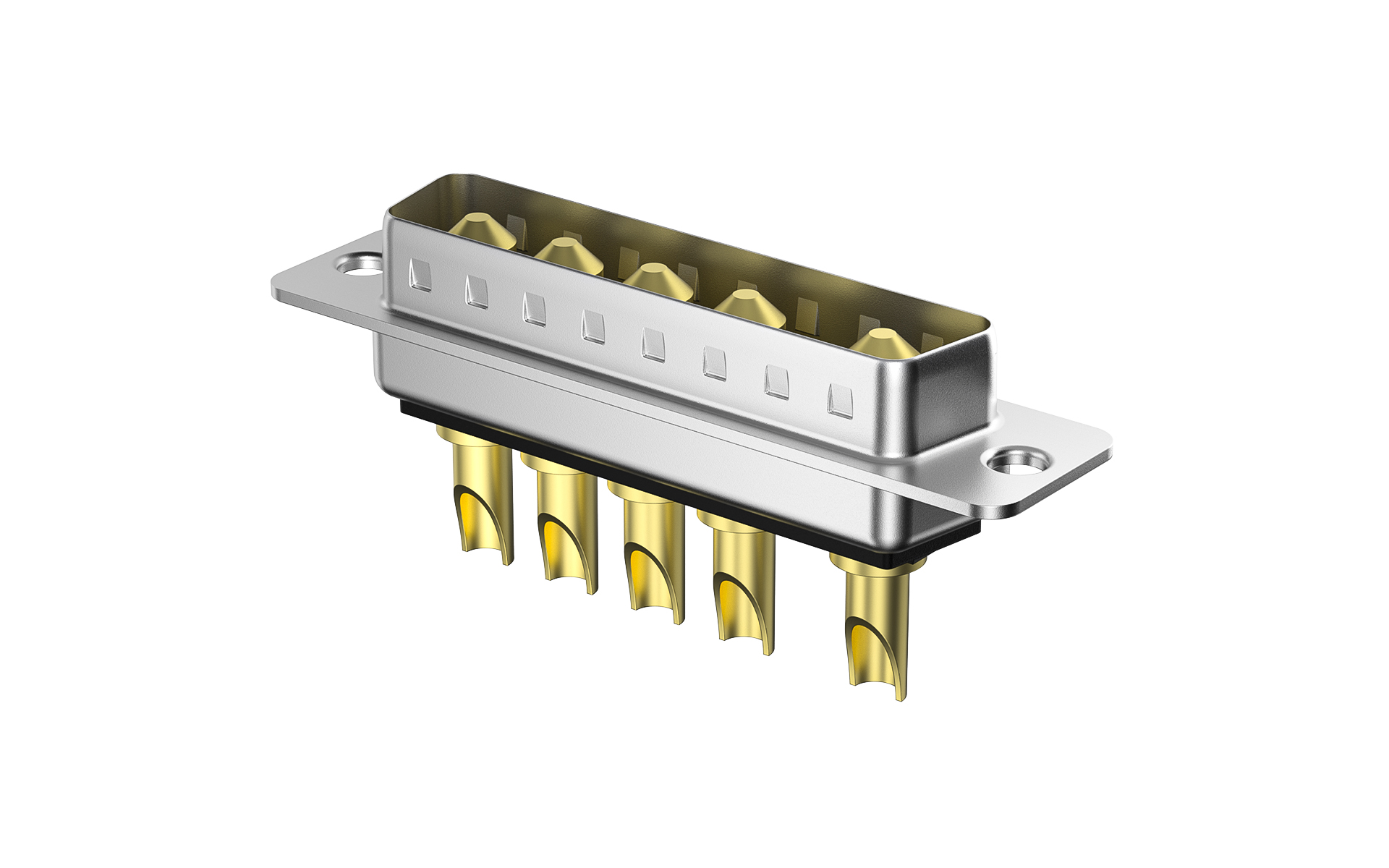

大电流D-SUB 公座 焊线式 5位(15μ'')(20A)
FDP0502-M0WS115K6KB
Hight Current D-sub Male 5Circuits(20A)
FDP0502-M0WS115K6KB Copy
Share this product
Stock(pcs)
1
Lead time

≦ 1 In stock

＞ 1 Estimated delivery date 2025-08-20

MPQ
50
MOQ
500
Quantity Unit Price
1 $9.182285
10 $8.713403
50 $7.697490
100 $7.033240
500 $6.173622
1000 $4.942805
5000 $4.864658
10000 $4.786510
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Mixed high current D-SUB W-series
Style
Plug
Gender
Male
Type
Type B
Row Option
Single row
Number of Positions
5Circuits
Contact Layout
5W5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
20A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.375μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDP0502-M.pdf
