FDV0312-F0WS103K6KB
大电流D-SUB 3位(3V3) ,母座 ,焊线式 ,3μ"(20A)
Power type D-sub 3Circuits(3V3), Female, Welding, 3μ"(20A)
Product Number：FDV0312-F0WS103K6KB
Production Status： Active
Power type D-sub 3Circuits(3V3), Female, Welding, 3μ

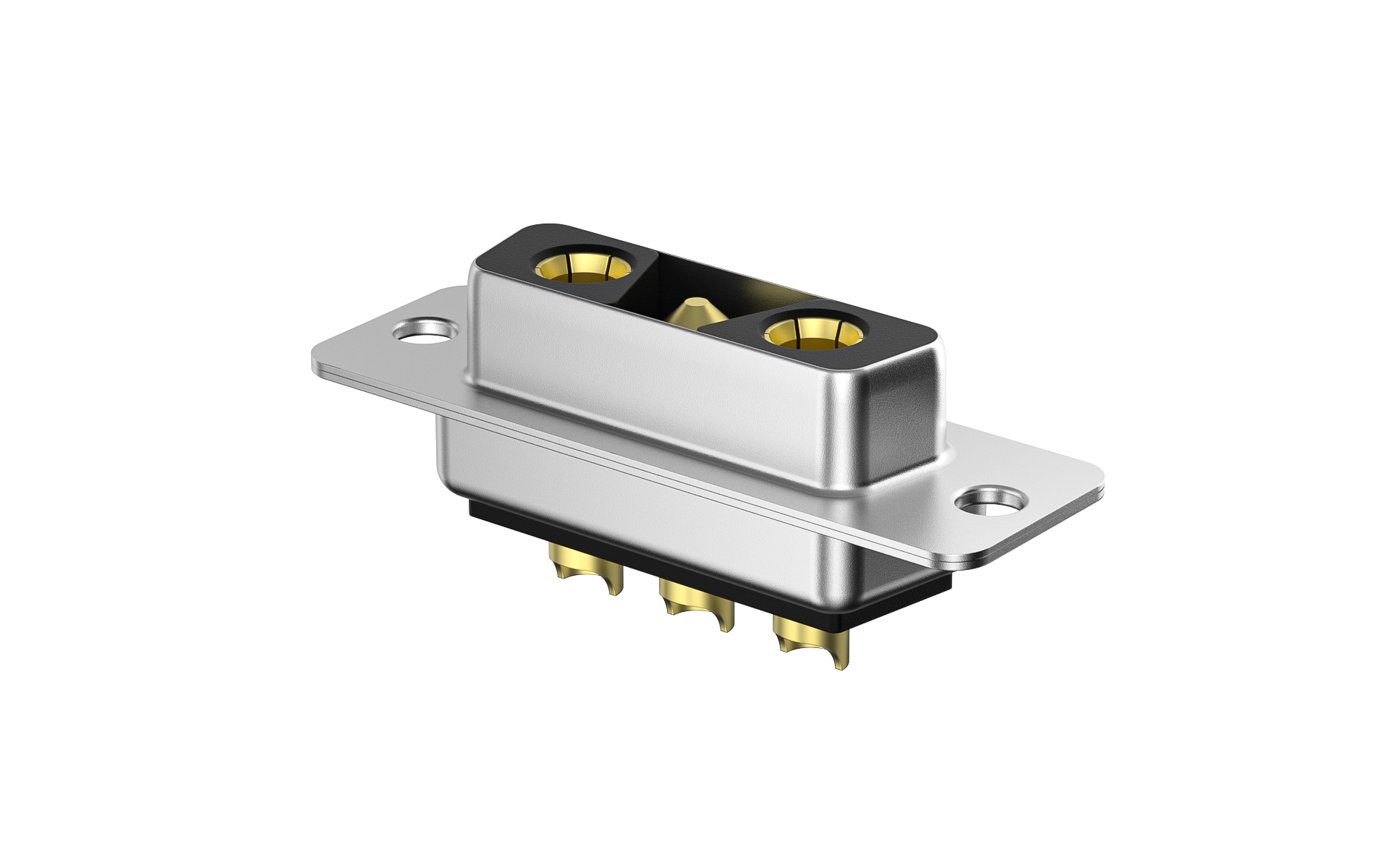

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{26.15509|tradeCurrencySymbol({digits:6})}}
10+ {{24.738605|tradeCurrencySymbol({digits:6})}}
50+ {{21.905635|tradeCurrencySymbol({digits:6})}}
100+ {{20.489151|tradeCurrencySymbol({digits:6})}}
500+ {{17.656182|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 7
Lead time Ship Immediately
MOQ 1000
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Mixed high current D-SUB V-series
Style
Plug
Gender
Female
Type
Type B
Row Option
Single row
Number of Positions
3Circuits
Contact Layout
3V3
Orientation
Vertical(180°)
Colour
Black
Current(Max)
20A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
No
Mounting Style
Soldering
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FDV0312-F.pdf

3D Drawings

FDV0312-F0WS103K6KB-REF.STEP
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Assembly shell
D-SUB metal hood, Applies to 15 circuits and HD26 circuits
FDB1501-C200B
D-SUB metal hood, Applies to 15 circuits and HD26 circuits
D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits
FR-4AA-05A
D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits
D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits
FVD1505-S2SIB0
D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits
D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits
FVD1506-S1SIB0
D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits
