大电流D-SUB 3位(3V3) ,母座 ,180°垂直 ,15μ"(20A)
FDV0312-F0WS115K6KB

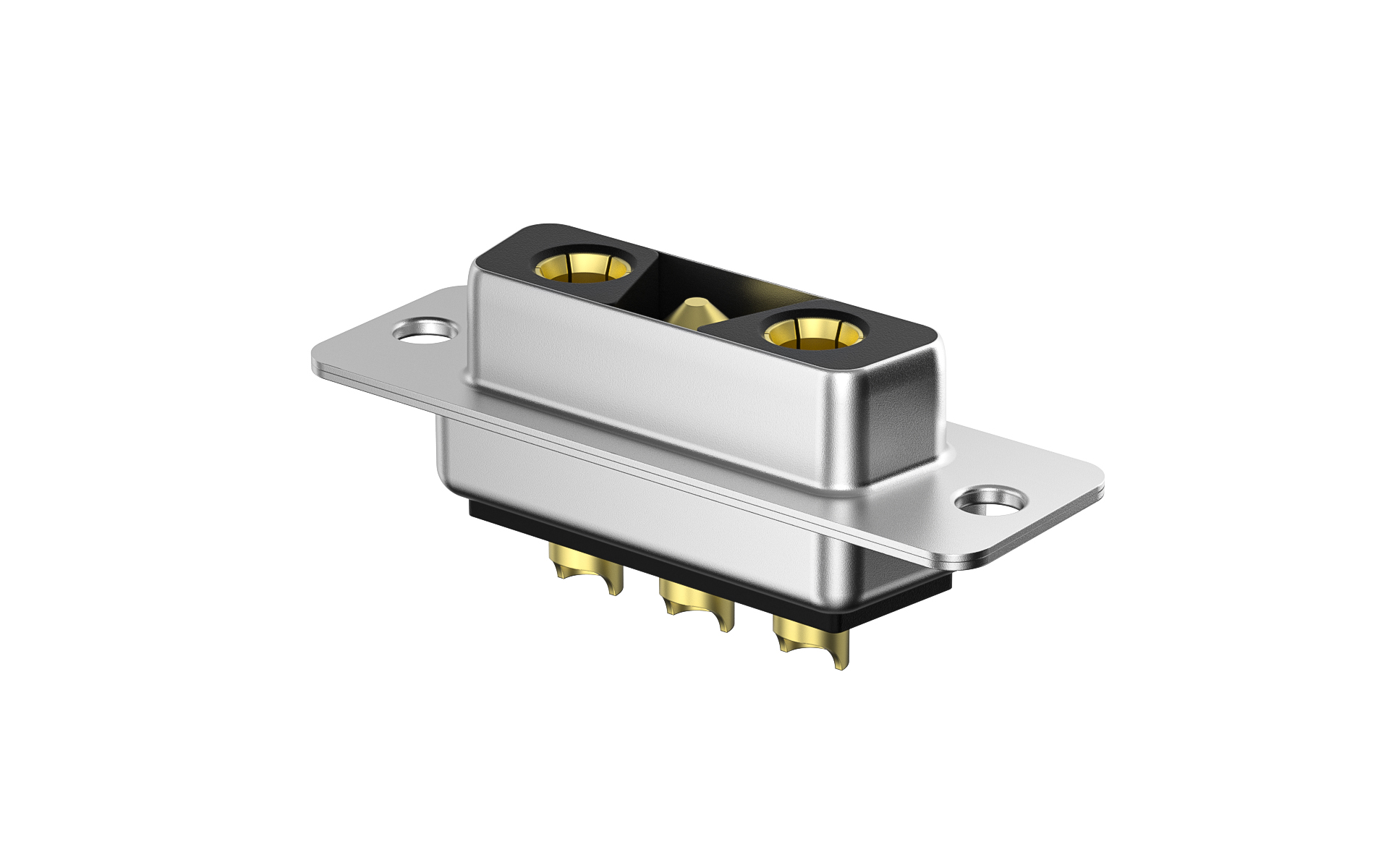

Power type D-sub 3Circuits(3V3), Female, 180° Vertical, 15μ"(20A)
FDV0312-F0WS115K6KB Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-14
MPQ
50
MOQ
500
Quantity Unit Price
1 $6.210584
10 $5.893448
50 $5.206319
100 $4.757043
500 $4.175627
1000 $3.343144
5000 $3.290288
10000 $3.237432

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Mixed high current D-SUB V-series
Style
Plug
Gender
Female
Type
Type B
Row Option
Single row
Number of Positions
3Circuits
Contact Layout
3V3
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
20A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.375μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FDV0312-F
Assembly shell
D-SUB metal hood, Applies to 15 circuits and HD26 circuits

FDB1501-C200B

D-SUB metal hood, Applies to 15 circuits and HD26 circuits

 D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

FR-4AA-05A

D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

 D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

FVD1505-S2SIB0

D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

 D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits

FVD1506-S1SIB0

D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits
