FES25423-MT48S3011GYKA-A
欧式插座,2.54mm,公,三排,48位,垂直(180度),通孔压接
Eurocard Connector, 2.54mm, Male, 3 rows, 48Circuits, Vertical(180°), Through hole press-fit
Product Number：FES25423-MT48S3011GYKA-A
Production Status： Active

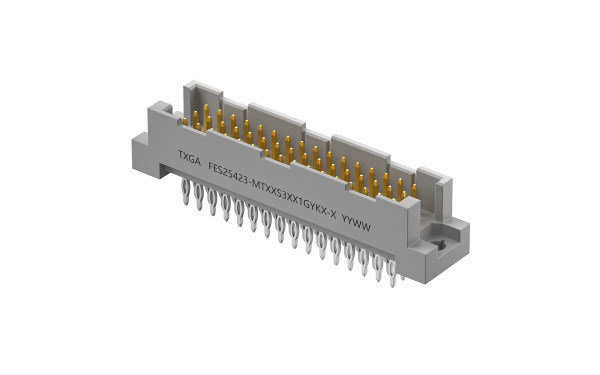

Eurocard Connector, 2.54mm, Male, 3 rows, 48Circuits, Vertical(180°), Through hole press-fit
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{16.17267|tradeCurrencySymbol({digits:6})}}
10+ {{14.984474|tradeCurrencySymbol({digits:6})}}
50+ {{13.136169|tradeCurrencySymbol({digits:6})}}
100+ {{12.344038|tradeCurrencySymbol({digits:6})}}
500+ {{8.746444|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 490
Lead time Ship Immediately
MOQ 560
MPQ 1280

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
DIN 41612 Connector
Gender
Male
Type
Type A
Pitch
2.54mm
Row Option
3 rows
Number of Positions
48Circuits
Peg
Without peg
Orientation
Vertical(180°)
Colour
Gray
Current(Max)
2A
Voltage(Max)
500V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mounting Style
Through hole press-fit
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FES25423-MTXXS3XX1GYKX-X.pdf

3D Drawings

FES25423.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Plug
Eurocard Connector, 2.54mm, Female, 3 rows, 48Circuits, Vertical(180°), Through hole
FES25420-FT48S3011GYKA-B
Eurocard Connector, 2.54mm, Female, 3 rows, 48Circuits, Vertical(180°), Through hole
Eurocard Connector, 2.54mm, Female, 3 rows, 48Circuits, Right angle(90°), Through hole
FES25428-FT48B3011GYKA-A
Eurocard Connector, 2.54mm, Female, 3 rows, 48Circuits, Right angle(90°), Through hole
