FPC/FFC连接器 0.3mm 卧贴下触点 13位(1mm)(掀锁)(金)
FFC03001-13SBB114W5M

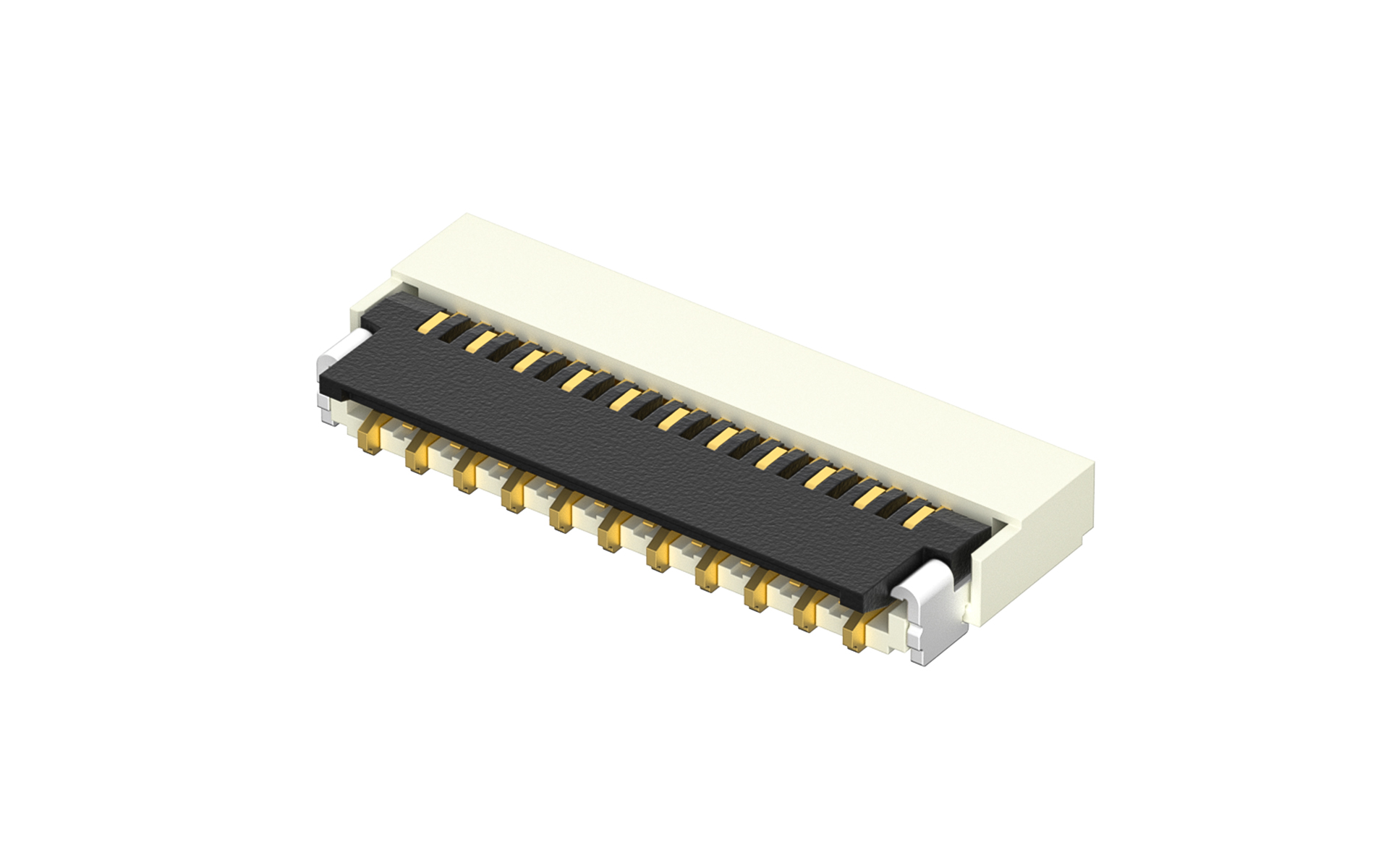

FPC/FFC connector 0.3mm Lower Contact 13Circuits(1mm)(SMT)
FFC03001-13SBB114W5M Copy
Share this product
Stock(pcs)
1990
Lead time

≦ 1990 In stock

＞ 1990 Estimated delivery date 2025-12-29

MPQ
5000
MOQ
5000
Quantity Unit Price
1 $0.274967
10 $0.258654
50 $0.226030
100 $0.209717
500 $0.177092
1000 $0.131580
2500 $0.129778
5000 $0.127975
10000 $0.126173
25000 $0.124370

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.3mm
Number of Positions
13Circuits
Contact Mating Location
Bottom contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.2A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

Drawing-FFC03001.pdf
