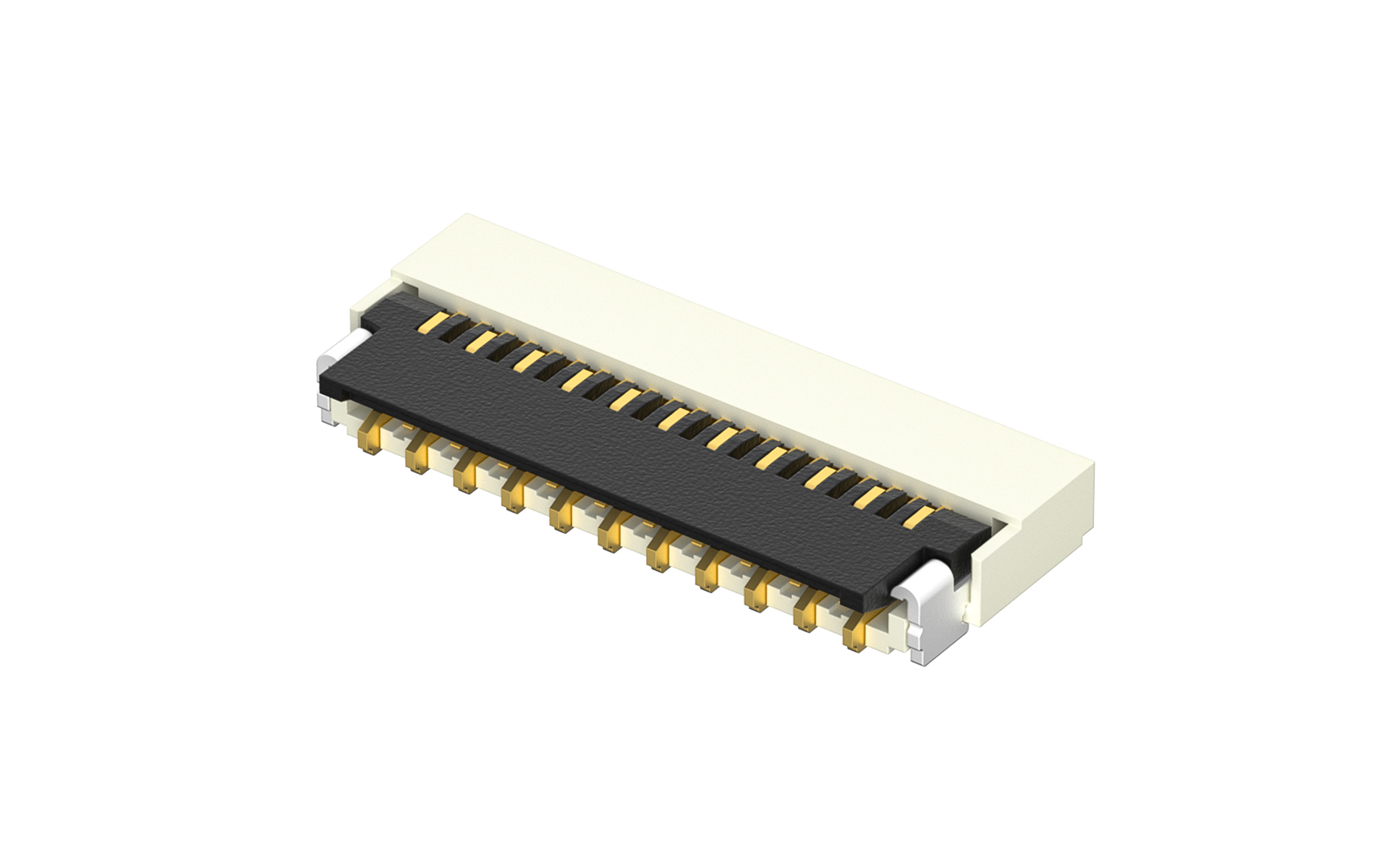

FPC/FFC连接器 0.3mm 卧贴下触点 23位(1mm)(掀锁)(金)
FFC03001-23SBB114W5M
FPC/FFC connector 0.3mm Lower Contact 23Circuits(1mm)(SMT)
FFC03001-23SBB114W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-07-24
MPQ
5000
MOQ
5000
Quantity Unit Price
1 $0.284625
10 $0.267740
50 $0.233969
100 $0.217084
500 $0.183313
1000 $0.136202
2500 $0.134336
5000 $0.132471
10000 $0.130605
25000 $0.128739
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.3mm
Number of Positions
23Circuits
Contact Mating Location
Bottom contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.2A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

Drawing-FFC03001.pdf
