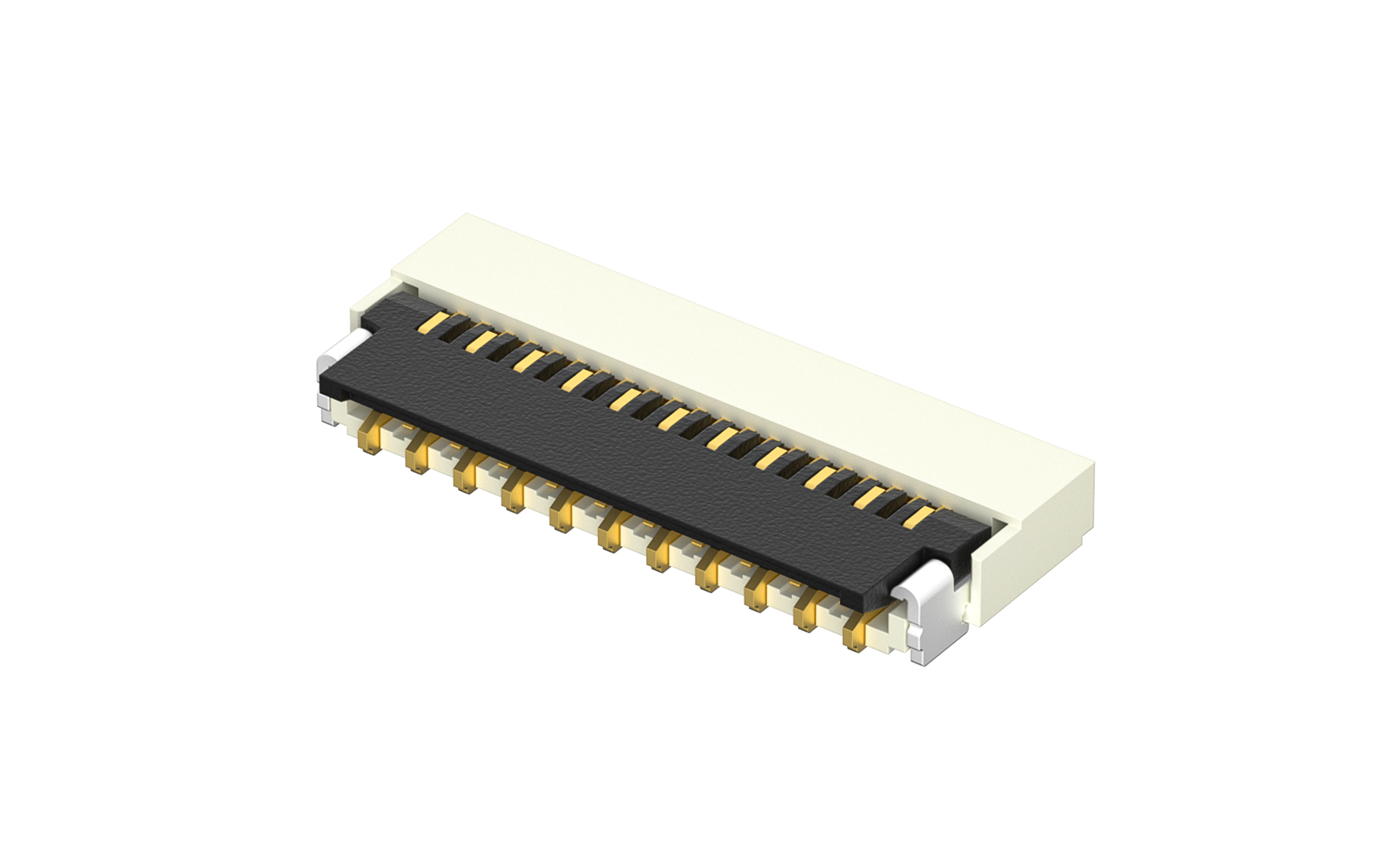

FPC/FFC连接器 0.3mm 卧贴下触点 29位(1mm)(掀锁)(金)
FFC03001-29SBB114W5M
FPC/FFC connector 0.3mm Lower Contact 29Circuits(1mm)(SMT)
FFC03001-29SBB114W5M Copy
Share this product
Stock(pcs)
60
Lead time

≦ 60 In stock

＞ 60 Estimated delivery date 2025-12-29

MPQ
5000
MOQ
5000
Quantity Unit Price
1 $0.272730
10 $0.256551
50 $0.224191
100 $0.208012
500 $0.175652
1000 $0.130510
2500 $0.128722
5000 $0.126934
10000 $0.125147
25000 $0.123359

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.3mm
Number of Positions
29Circuits
Contact Mating Location
Bottom contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.2A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

Drawing-FFC03001.pdf
